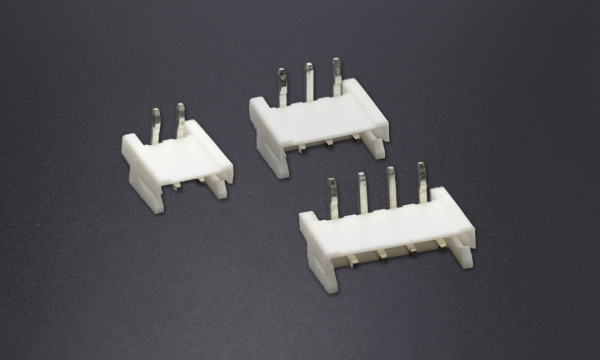

FWF25006 Wafer 2.5mm 90°Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF25006-S02B22W1B

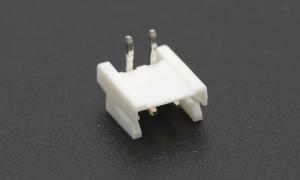

Wafer 2.5mm 90°Angle 2Circuits (DIP)
Stock(pcs) 1438 Status Active MPQ 2000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25006-S03B22W1B

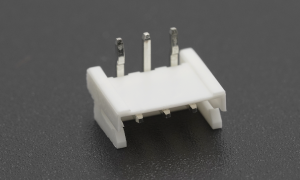

Wafer 2.5mm 90°Angle 3Circuits (DIP)
Stock(pcs) 140 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25006-S04B22W1B

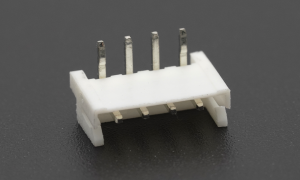

Wafer 2.5mm 90°Angle 4Circuits (DIP)
Stock(pcs) 835 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25006-S05B22W1B
Wafer 2.5mm 90°Angle 5Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF25006-S06B22W1B

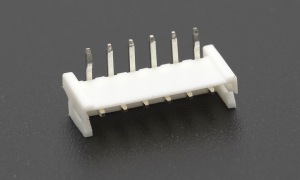

Wafer 2.5mm 90°Angle 6Circuits (DIP)
Stock(pcs) 694 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25006-S07B22W1B

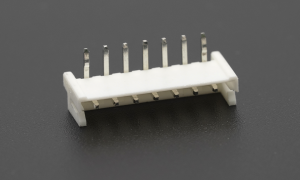

Wafer 2.5mm 90°Angle 7Circuits (DIP)
Stock(pcs) 1006 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 90°Angle (DIP)
- Circuits2-7
- Pitch2.5mm
- Height8.0mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA66 UL94V-2
- Compatible Parts
- PulgFHG25003
- Receptacle-
- TerminalFT25002
- Assembly shell-
