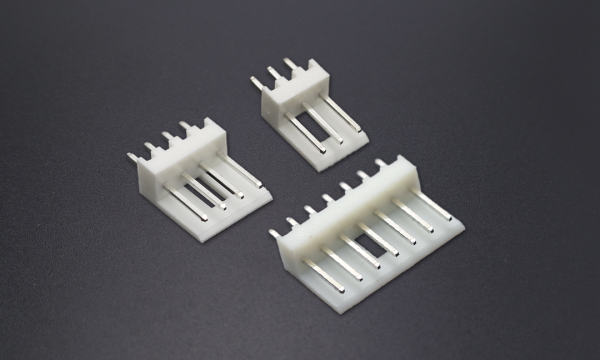

FWF25009 Wafer 2.5mm 180°Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF25009-S02S22W1B
Wafer 2.5mm 180°Vertical 2Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

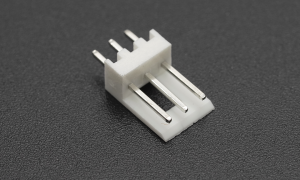

FWF25009-S03S22W1B
Wafer 2.5mm 180°Vertical 3Circuits (DIP)
Stock(pcs) 30 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

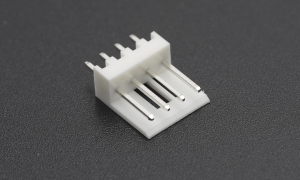

FWF25009-S04S22W1B
Wafer 2.5mm 180°Vertical 4Circuits (DIP)
Stock(pcs) 15 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25009-S05S22W1B
Wafer 2.5mm 180°Vertical 5Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

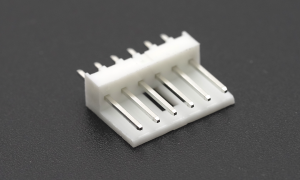

FWF25009-S06S22W1B
Wafer 2.5mm 180°Vertical 6Circuits (DIP)
Stock(pcs) 1000 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

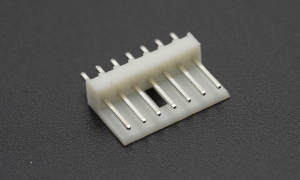

FWF25009-S07S22W1B
Wafer 2.5mm 180°Vertical 7Circuits (DIP)
Stock(pcs) 30 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF25009-S08S22W1B
Wafer 2.5mm 180°Vertical 8Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF25009-S09S22W1B
Wafer 2.5mm 180°Vertical 9Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF25009-S10S22W1B
Wafer 2.5mm 180°Vertical 10Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 180°Vertical (DIP)
- Circuits2-10
- Pitch2.5mm
- Height10.6mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA66 UL94V-0
- Compatible Parts
- PulgFHG25005
- Receptacle-
- TerminalFT25011
- Assembly shell-
