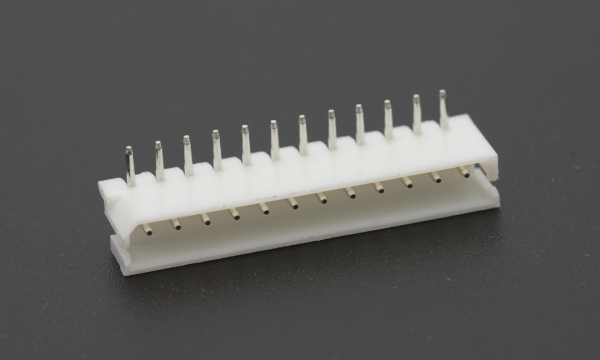

FWF25025 Wafer 2.5mm 90°Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF25025-S02B22W5B
Wafer 2.5mm 90°Angle 2Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-05-31 -
FWF25025-S05B22W5B
Wafer 2.5mm 90°Angle 5Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-05-31 -
FWF25025-S12B22W5B
Wafer 2.5mm 90°Angle 12Circuits (DIP)
Stock(pcs) 650 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31
- Category
- CategoryWafer 90°Angle (DIP)
- Circuits2-12
- Pitch2.5mm
- Height4.9mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinPA66 UL94V-2
- Compatible Parts
- PulgFHG25002
- Receptacle-
- TerminalFT25005
- Assembly shell-
