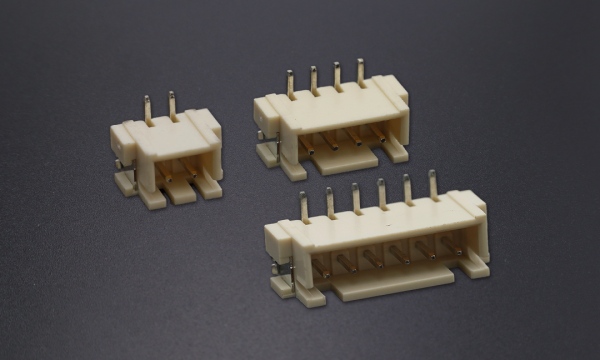

FWF25029 Wafer 2.5mm 180°Vertical (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

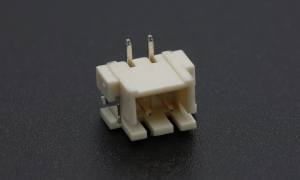

FWF25029-S02S25W5M
Wafer 2.5mm 180°Vertical 2Circuits (SMT)
Stock(pcs) 122 Status Active MPQ 600 MOQ 600 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

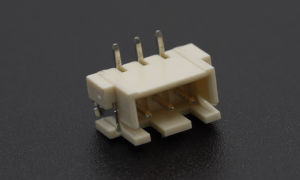

FWF25029-S03S25W5M
Wafer 2.5mm 180°Vertical 3Circuits (SMT)
Stock(pcs) 275 Status Active MPQ 600 MOQ 600 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

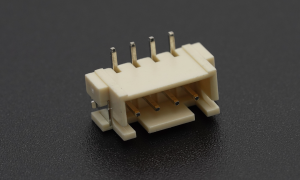

FWF25029-S04S25W5M
Wafer 2.5mm 180°Vertical 4Circuits (SMT)
Stock(pcs) 917 Status Active MPQ 600 MOQ 600 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

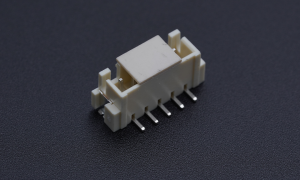

FWF25029-S05S25W5M
Wafer 2.5mm 180°Vertical 5Circuits (SMT)
Stock(pcs) 14860 Status Active MPQ 600 MOQ 600 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

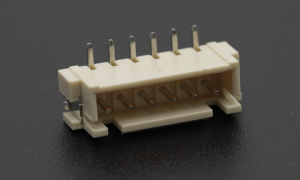

FWF25029-S06S25W5M
Wafer 2.5mm 180°Vertical 6Circuits (SMT)
Stock(pcs) 466 Status Active MPQ 600 MOQ 600 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}}
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits2-6
- Pitch2.5mm
- Height7.8mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG25006
- Receptacle-
- TerminalFT25001
- Assembly shell-
