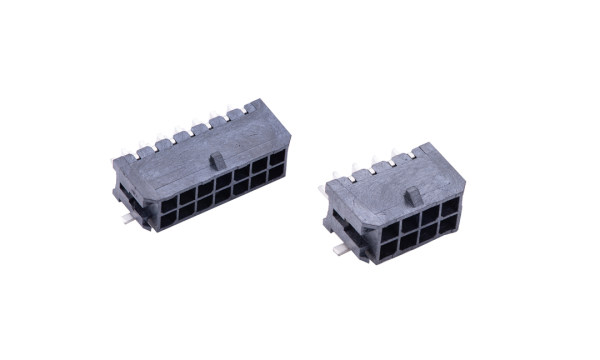

FWF30022 Wafer 3mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF30022-D02B23K6M
Wafer 3mm 90°Angle 2Circuits (SMT)
Stock(pcs) 30 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D04B23K6M
Wafer 3mm 90°Angle 4Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF30022-D06B23K6M
Wafer 3mm 90°Angle 6Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

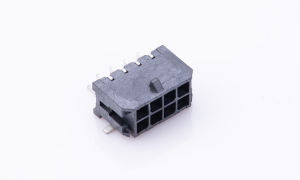

FWF30022-D08B23K6M
Wafer 3mm 90°Angle 8Circuits (SMT)
Stock(pcs) 3850 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D10B23K6M
Wafer 3mm 90°Angle 10Circuits (SMT)
Stock(pcs) 100 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D12B23K6M
Wafer 3mm 90°Angle 12Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

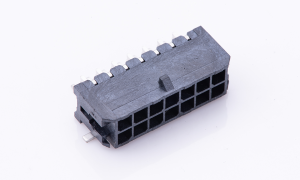

FWF30022-D14B23K6M
Wafer 3mm 90°Angle 14Circuits (SMT)
Stock(pcs) 1944 Status Active MPQ 200 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D16B23K6M
Wafer 3mm 90°Angle 16Circuits (SMT)
Stock(pcs) 28 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D18B23K6M
Wafer 3mm 90°Angle 18Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF30022-D20B23K6M
Wafer 3mm 90°Angle 20Circuits (SMT)
Stock(pcs) 30 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF30022-D22B23K6M
Wafer 3mm 90°Angle 22Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF30022-D24B23K6M
Wafer 3mm 90°Angle 24Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2,4,6,8,10,12,14,16,18,20,22,24
- Pitch3.00mm
- Height9.90mm
- Electrical
- Current - Maximum per Contact5.00A
- Voltage - Maximum250V
- Contact Resistance10 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1500V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- PulgFHG30001
- Receptacle-
- TerminalFT30001
- Assembly shell-
