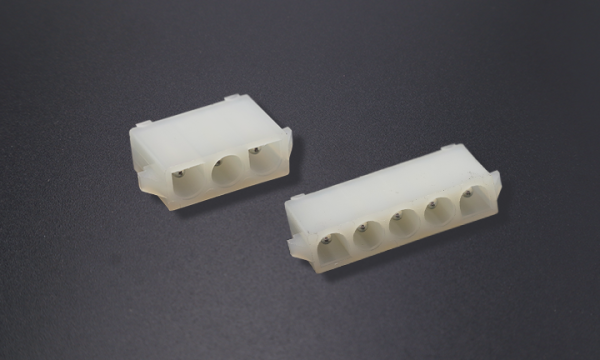

FWF63501 Wafer 6.35mm 180°Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF63501-S02S22TB

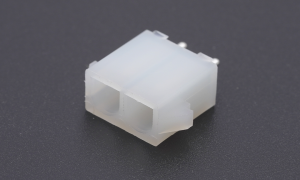

Wafer 6.35mm 180°Vertical 2Circuits (DIP)
Stock(pcs) 76 Status Active MPQ 500 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -
FWF63501-S03S22TB

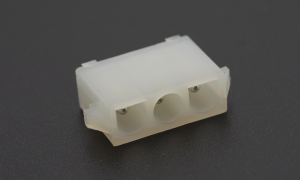

Wafer 6.35mm 180°Vertical 3Circuits (DIP)
Stock(pcs) 137 Status Active MPQ 500 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -
FWF63501-S04S22TB

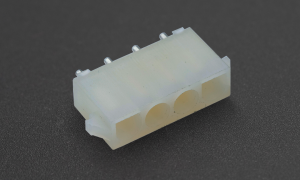

Wafer 6.35mm 180°Vertical 4Circuits (DIP)
Stock(pcs) 1795 Status Active MPQ 500 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -
FWF63501-S05S22TB

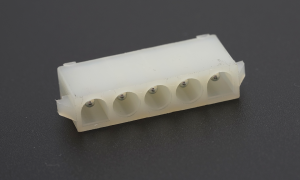

Wafer 6.35mm 180°Vertical 5Circuits (DIP)
Stock(pcs) 30 Status Active MPQ 500 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}}
- Category
- CategoryWafer 180°Vertical (DIP)
- Circuits2-5
- Pitch6.35mm
- Height14.7mm
- Electrical
- Current - Maximum per Contact10.00A
- Voltage - Maximum600V
- Contact Resistance25 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage5000V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA66 UL94V-0
- Compatible Parts
- PulgFHG63501
- Receptacle-
- TerminalFT63502
- Assembly shell-
