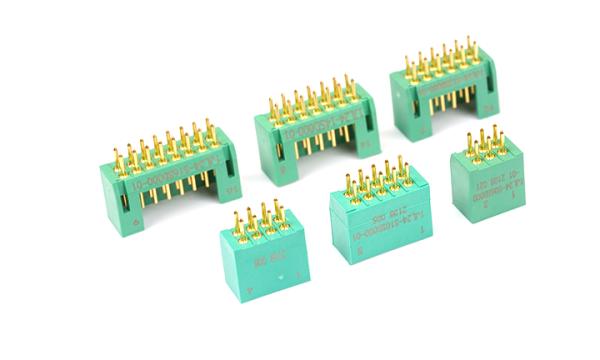

FXJL24-S JL24 Connector Socket 2mm 180° Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

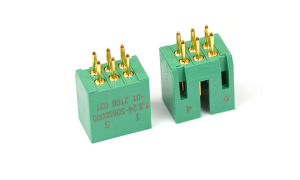

F1JL24-S06SD000-01
JL24 ,Socket ,6Circuits ,180°Vertical ,Through Hole
Stock(pcs) 88 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

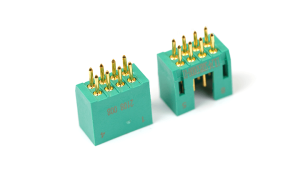

F1JL24-S08SD000-01
JL24 ,Socket ,8Circuits ,180°Vertical ,Through Hole
Stock(pcs) 50 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

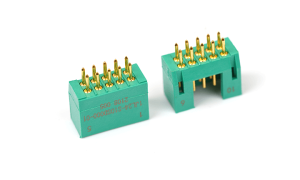

F1JL24-S10SD000-01
JL24 ,Socket ,10Circuits ,180°Vertical ,Through Hole
Stock(pcs) 29 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

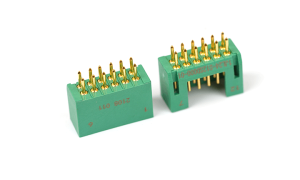

F1JL24-S12SD000-01
JL24 ,Socket ,12Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

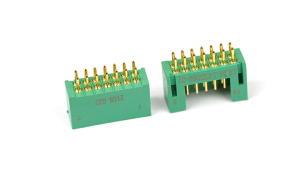

F1JL24-S14SD000-01
JL24 ,Socket ,14Circuits ,180°Vertical ,Through Hole
Stock(pcs) 13 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

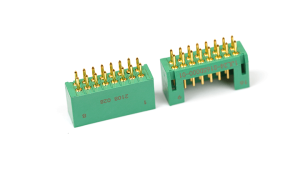

F1JL24-S16SD000-01
JL24 ,Socket ,16Circuits ,180°Vertical ,Through Hole
Stock(pcs) 18 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL24-S18SD000-01
JL24 ,Socket ,18Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

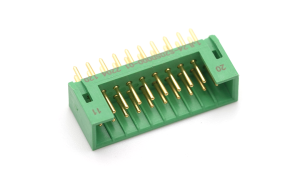

F1JL24-S20SD000-01
JL24 ,Socket ,20Circuits ,180°Vertical ,Through Hole
Stock(pcs) 14 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL24-S22SD000-01
JL24 ,Socket ,22Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL24-S24SD000-01
JL24 ,Socket ,24Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL24-S26SD000-01
JL24 ,Socket ,26Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL24-S28SD000-01
JL24 ,Socket ,28Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

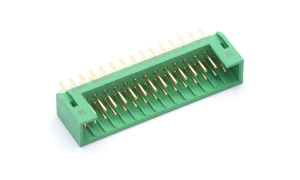

F1JL24-S30SD000-01
JL24 ,Socket ,30Circuits ,180°Vertical ,Through Hole
Stock(pcs) 28 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F3JL24-S08SD000-01
JL24 ,Socket ,8Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 100 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F3JL24-S10SD000-01
JL24 ,Socket ,10Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 100 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryJL24 Connector Socket 180° Vertical (DIP)
- Circuits6-30
- Pitch2mm
- Height8.9mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum300V
- Contact Resistance12.5 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-65℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- PulgF0JL24-P,FWJL24-S,FWJL24-D
- Receptacle-
- Terminal-
- Assembly shell-
