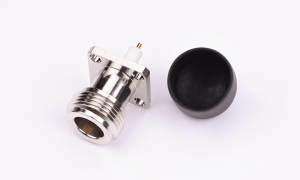

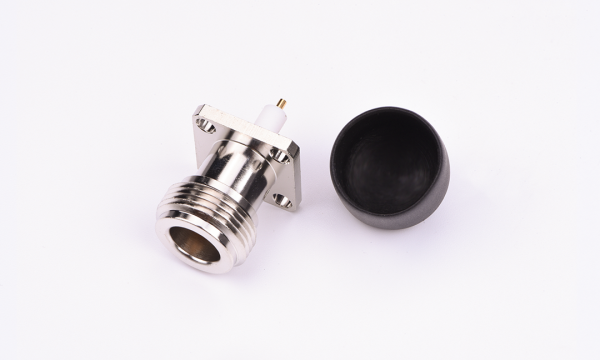

F0000N-J50S0SFD-01 N ,Jack ,50Ohm ,socket ,180° Vertical ,Through Hole
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryN ,Jack ,50Ohm ,socket ,180° Vertical ,Through Hole
- Height29.8mm
- Electrical
- Impedance50Ω
- VSWR1.3 Max
- Voltage - Maximum1500V
- Insulation Resistance5000MΩ Min
- Withstanding Voltage2500V AC r.m.s
- Temperature Range operating-55℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPTFE ,UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
