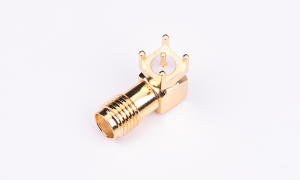

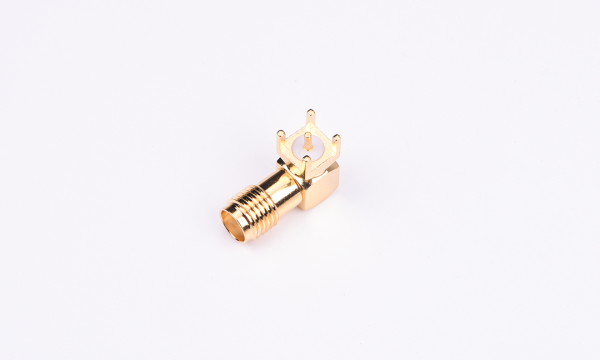

F00SMA-J50S0BHD-01 SMA ,Jack ,50Ohm ,socket ,90° Angle ,Through Hole
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
F00SMA-J50S0BHD-01
SMA ,Jack ,50Ohm ,socket ,90° Angle ,PCB welding ,Through Hole
Stock(pcs) 281 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

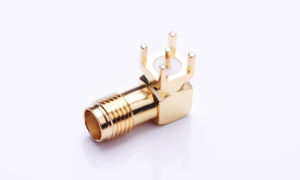

F00SMA-J50S0BHD-01-T
SMA ,Jack ,50Ohm ,socket ,90° Angle ,PCB welding ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-18|timezoneDate}}
- Category
- CategorySMA ,Jack ,50Ohm ,socket ,90° Angle ,Through Hole
- Height12mm
- Electrical
- Impedance50Ω
- VSWR1.3 Max
- Voltage - Maximum335V
- Insulation Resistance5000MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPTFE ,UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
