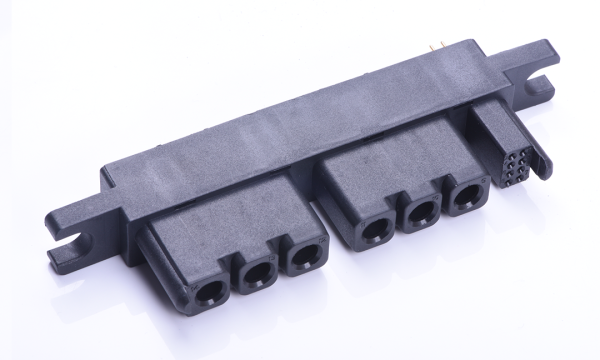

F00MPC-P14SD300-01 Charging pile module power connector Plug DC 30A
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryCharging pile module power connector Plug
- Circuits14
- Entry Angle180° Vertical
- Electrical
- Current - Maximum per Contact75.00A
- Voltage - Maximum1000V
- Contact Resistance12 mΩ Max
- Insulation Resistance3000 MΩ Min
- Withstanding Voltage3000V AC r.m.s
- Temperature Range operating-55ºC~+125ºC
- Material and Plating
- Material-MetalTin Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleF00MPC-S14RD300-01
- TerminalF0CLCT-05004120-01
- Assembly shell-
- AssembliesFSM040-10100200-01
