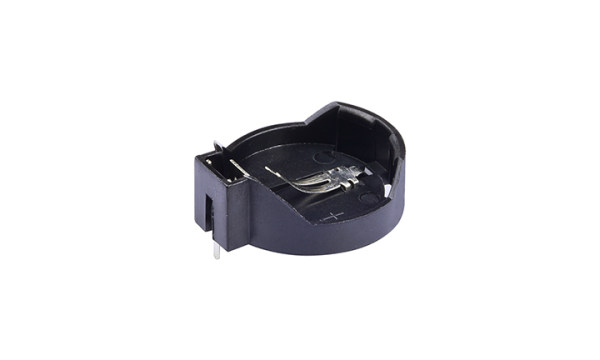

FBA25014 Button Battery Connector(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryButton Battery Connector(DIP)
- BatteryCR2032
- Color - ResinBlack
- Electrical
- Voltage - Maximum3V
- Contact Resistance20 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
