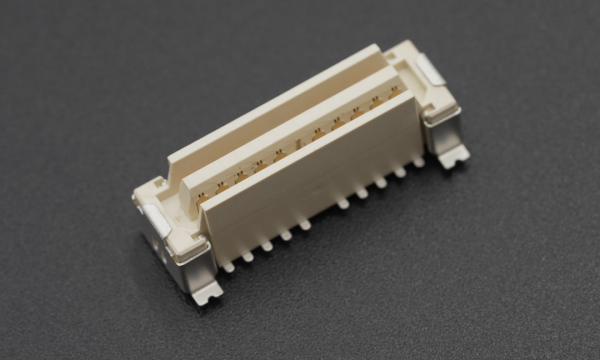

FBB20002-M Board to Board 2mm SMT
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryBoard to board - Male Pitch：2mm （SMT）
- Circuits20
- Mating height20.3mm
- Pitch2mm
- Durabiliy (mating cycles max)30
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum100V
- Insulation Resistance50 MΩ Min
- Contact Resistance100 mΩ Max
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFBB20002-F
- Terminal-
- Assembly shell-
