板对板连接器 2mm ,公座 ,20位 ,立贴 (组合高度20.3mm)
FBB20002-M20S3013W5M

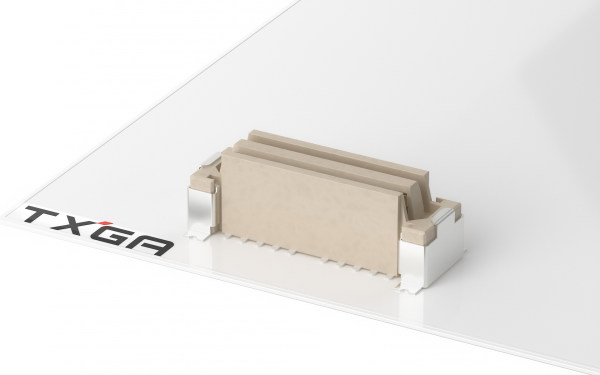

Board to Board 2mm, Male, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)
FBB20002-M20S3013W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-03
MPQ
200
MOQ
200
Quantity Unit Price
1 $1.688792
10 $1.617068
50 $1.362771
100 $1.251923
500 $1.108474
1000 $0.893299
5000 $0.880259
10000 $0.867218

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
100V
Contact Resistance
100 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB20002-M.pdf

3D Drawings

FBB20002-M20S3013W5M-REF
Receptacle
Board to Board 2mm, Female, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)

FBB20002-F20S3013W5M

Board to Board 2mm, Female, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)
