FBH20005 Ejector Box Header 2mm 90°(DIP)_TXGA Industrial Electronic Co., Ltd.

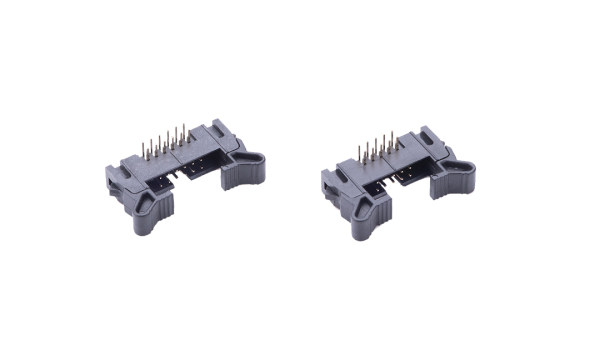

FBH20005 Ejector Box Header 2mm 90°(DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

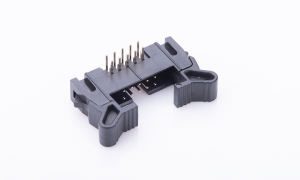

FBH20005-D10B1004K6K

Ejector Box Header 2mm 90°Angle 10Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

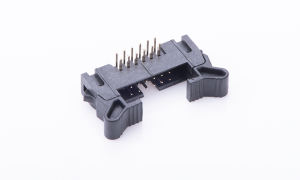

FBH20005-D12B1004K6K

Ejector Box Header 2mm 90°Angle 12Circuits(DIP)

Stock(pcs)	945	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FBH20005-D14B1004K6K

Ejector Box Header 2mm 90°Angle 14Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D16B1004K6K

Ejector Box Header 2mm 90°Angle 16Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D20B1004K6K

Ejector Box Header 2mm 90°Angle 20Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D24B1004K6K

Ejector Box Header 2mm 90°Angle 24Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D26B1004K6K

Ejector Box Header 2mm 90°Angle 26Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D30B1004K6K

Ejector Box Header 2mm 90°Angle 30Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D34B1004K6K

Ejector Box Header 2mm 90°Angle 34Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D34B1014K6K

Ejector Box Header 2mm 90°Angle 34Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D40B1004K6K

Ejector Box Header 2mm 90°Angle 40Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D44B1004K6K

Ejector Box Header 2mm 90°Angle 44Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D50B1004K6K

Ejector Box Header 2mm 90°Angle 50Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FBH20005-D60B1004K6K

Ejector Box Header 2mm 90°Angle 60Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

Category
CategoryEjector Box Header 2mm 90°Angle(DIP)
Circuits10,12,14,16,20,24,26,30,34,40,44,50
Pitch2.00mm
Electrical
Current - Maximum per Contact2.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-40ºC~+105ºC
Material and Plating
Material-MetalBrass
Material - Plating MatingGold
Material - Plating TerminationGold or Tin
Material - ResinPA9T UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

Drawing-FBH20005.pdf
