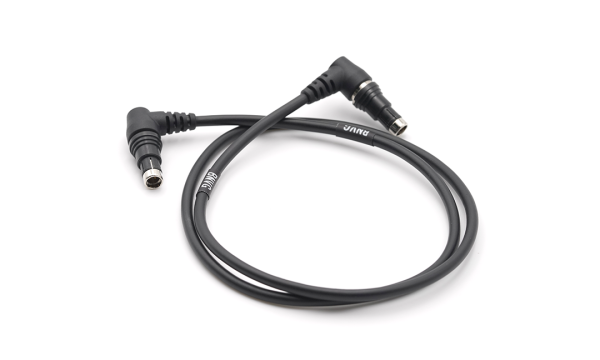

C102 Push-Pull male Plug
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- TypeBody styles SS or SC Short Plug with shield
- Circuits2,3,4,5,7,9
- SpecificationSS Plug/SC Plug Overmold
- polarity Contact polarity A
- Electrical
- Current - Maximum per Contact5.50A
- Wire Size (AWG)-
- Voltage - Maximum60V
- Contact Resistance8mΩ Max
- Insulation Resistance100 MΩ Min
- Rated voltage2Circuits,3ircuits-250V AC r.m.s,4Circuits-200V,5-7-9Circuits-160V
- mechanical
- Temperature Range operating-55℃+100℃
- Degree of ProtectionIP68
- Mechanical opertion≥10000
- Connector locking sytemRear-mounting M9X0.5
- Wiring typesolder
- Material and Plating
- Coupling NutBrass
- shellBrass Plating Cr
- Contactbronze
- Plating for ContactGold
- Housing-MaterialPEEK
- OvermoldingTPU
- Compatible Parts
- PulgFC1020-S
