M8 CABLE FEMALE STRAIGHT SINGLE ENDED
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

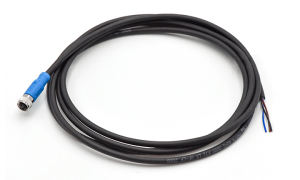

FCA08002-A03P211BK2020000
M8 CABLE FEMALE STRAIGHT SINGLE ENDED ,A-CODED ,3Circuits ,PLUG ,0° ,PUR ,2M
Stock(pcs) 99 Status Active MPQ 100 MOQ 100 Lead time Estimated delivery date when out of stock {{2026-04-17|timezoneDate}} -

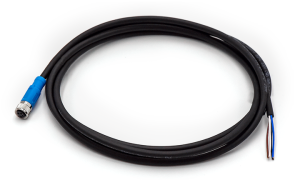

FCA08002-A04P211BK2020000
M8 CABLE FEMALE STRAIGHT SINGLE ENDED ,A-CODED ,4Circuits ,PLUG ,0° ,PUR ,2M
Stock(pcs) 99 Status Active MPQ 100 MOQ 100 Lead time Estimated delivery date when out of stock {{2026-04-17|timezoneDate}}
- Category
- CategoryM8 FEMALE CABLE STRAIGHT SINGLE ENDED
- Circuits3,4 Circuits
- SpecificationM8X1.0
- CodedA-Coded
- Electrical
- Current - Maximum per Contact4.00A
- Voltage - Maximum3Circuits-60V,4Circuits-60V
- Contact Resistance5 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-40℃+85℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion>100
- Connector locking sytemM8X1.0
- Material and Plating
- Coupling NutCopper Alloy
- ContactCopper Alloy
- Plating for ContactGold/Sliver
- Housing-MaterialPA
- O-ringRubber
- Over-MoldingTPU/PVC
- Cable JacketPUR/PVC
- Jacket ColorGray/Black
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
