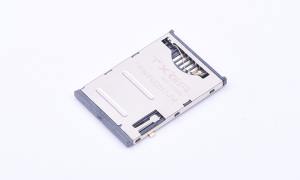

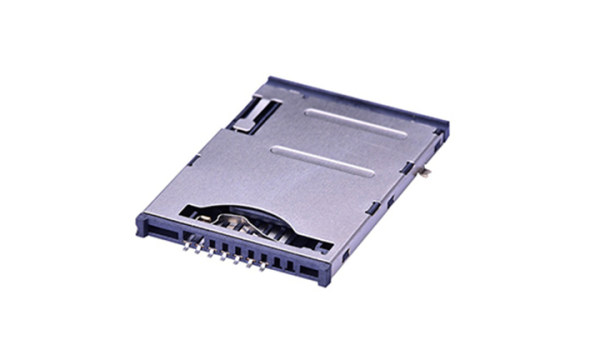

FCD517 Mini SIM Card 6Circuits (H2)(Push to push)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategorySIM card connector Push to Push type(SMT)
- Height2.00mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum500V
- Contact Resistance100 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+80ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinHigh Temperature Plastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
