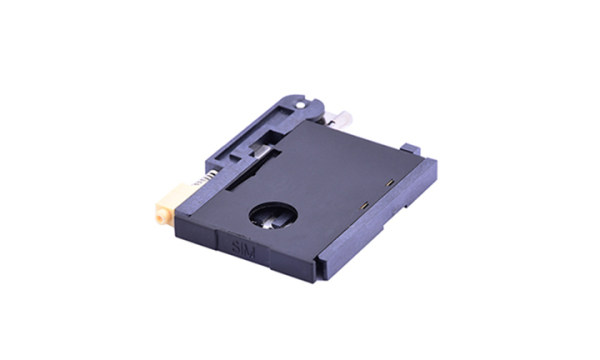

FCD515 Mini SIM card connector 8Circuits(H3.0mm)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FCD515-7L
Mini SIM card connector 8Circuits(H3)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1 Lead time Estimated delivery date {{2026-04-11|timezoneDate}} -

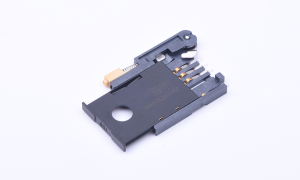

FCD515-7M
Mini SIM card connector 8Circuits(H3)
Stock(pcs) 300 Status Active MPQ 400 MOQ 1 Lead time Estimated delivery date when out of stock {{2026-04-11|timezoneDate}}
- Category
- CategorySIM card connector Push type(SMT)
- Height3.00mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum50V
- Contact Resistance40 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinHigh Temperature Plastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
