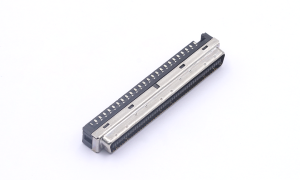

FCS10009 SCSI Connector 100Circuits Welding type Male
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategorySCSI Connector Welding type Male
- Circuits100
- Pitch1.27mm
- Height14.9mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum250V
- Contact Resistance35 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40℃+105℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFCS10007
- Terminal-
- Assembly shell-
