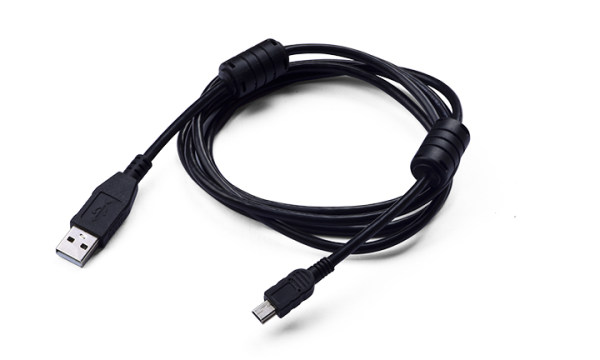

USB 2.0 Cable: USB A TYPE MALE TO MINI USB MALE 5PIN
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FCW004-000011
USB 2.0 Cable USB A TYPE MALE TO MINI USB MALE 5PIN L=1500MM
Stock(pcs) 0 Status Active MPQ 1500 MOQ 1000 Lead time Estimated delivery date 2025-07-19 -
FCW004-000012
USB 2.0 Cable USB A TYPE MALE TO MINI USB MALE 5PIN L=2500MM
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-07-19
- Type
- TypeUSB 2.0 Cable: USB A TYPE MALE TO MINI USB MALE 5PIN
- Electrical
- Operating voltage30V
- Current - Maximum per Contact1.00A
- Temperature Range operating-15ºC~+80ºC
- Impedance90±10Ω
- Cable specification
- ConductorTin Plated Copper
- Cross section28AWG (0.08mm²)*1PR/26AWG (0.13mm²)*2C
- JacketPVC
- StandardUL/2725
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
