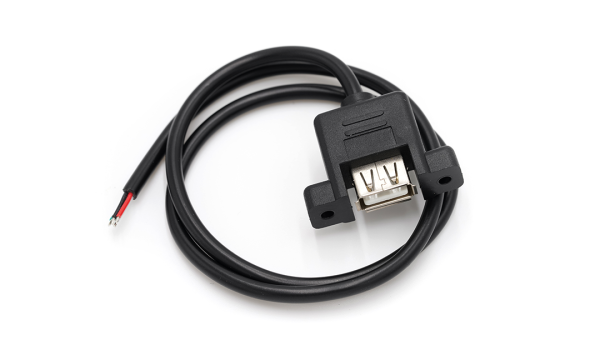

FCW004-000022 USB Cable USB A FEMALE TO OPEN L=500MM
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Type
- TypeUSB Cable USB A FEMALE TO OPEN L=500MM
- Electrical
- Operating voltage30V
- Current - Maximum per Contact1.50A
- Temperature Range operating-15ºC~+80ºC
- Impedance3Ω
- Cable specification
- ConductorTin Plated Copper
- Cross section24AWG(0.22mm²)*4C
- JacketPVC
- StandardUL/2725
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
