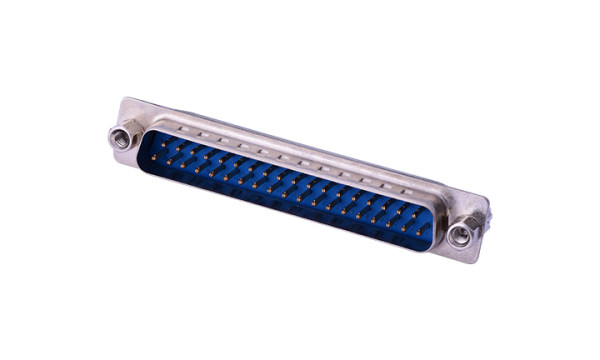

FDB3703 D-SUB 180°Vertical Male 37Circuits
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

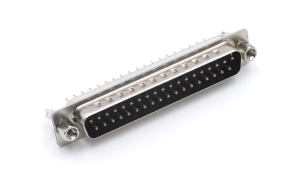

FDB3703-M0DS100K6KF
D-SUB 37Circuits ,Male ,180° Vertical(DIP) ,Gold flash ,Black
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date {{2026-04-20|timezoneDate}} -

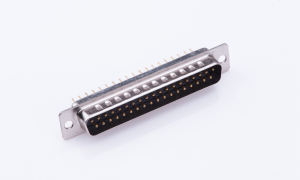

FDB3703-M0DS100K6LA
D-SUB 180°Vertical Male 37Circuits(Black)
Stock(pcs) 3 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -

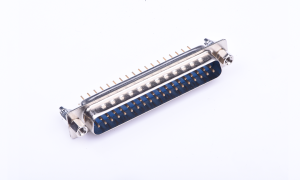

FDB3703-M0DS100U1KF
D-SUB 180°Vertical Male 37Circuits(Blue)
Stock(pcs) 15 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -
FDB3703-M0DS100U1LF
D-SUB 180°Vertical Male 37Circuits(Blue)
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date {{2026-04-15|timezoneDate}} -
FDB3703-M0DS100U1LH
D-SUB 180°Vertical Male 37Circuits(Blue)
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date {{2026-04-15|timezoneDate}}
- Category
- CategoryD-SUB 180°Vertical Male（DIP）
- Circuits37
- Row optionDouble row
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance25 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55ºC~+105ºC
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
