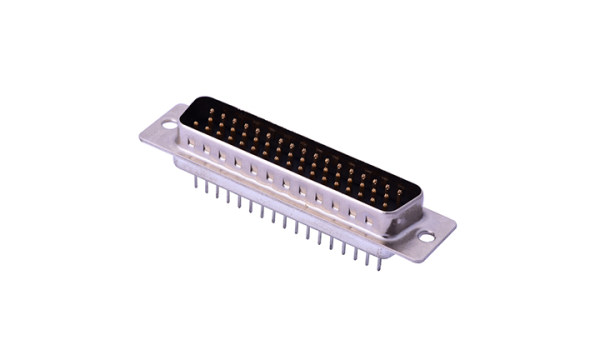

FDB5003 D-SUB 180°Vertical Male 50Circuits
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FDB5003-M0DS100K6KA
D-SUB 180°Vertical Male 50Circuits(Black)
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date {{2026-04-15|timezoneDate}} -

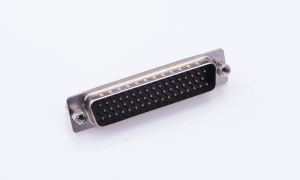

FDB5003-M0DS100K6KF
D-SUB 180°Vertical Male 50Circuits(Black)
Stock(pcs) 30 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}}
- Category
- CategoryD-SUB 180°Vertical Male (DIP)
- Circuits50
- Row optionDouble row
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum1000V
- Contact Resistance25 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55ºC~+105ºC
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
