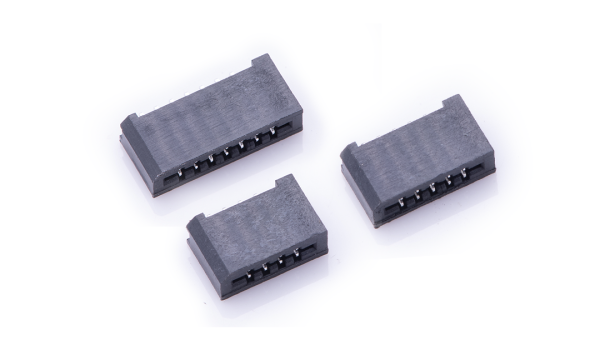

FFC12510 FPC/FFC connector 1.25mm 1.25mm Double Contact(H3.0)(SMT)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FFC12510-04SBC224K6M

FPC/FFC connector 1.25mm Double Contact 4Circuits(3mm)(SMT)

Stock(pcs)	1469	Status	Discontinued
MPQ	1500	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-07-23

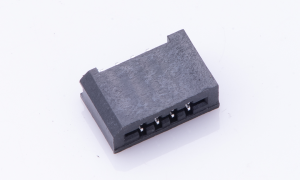

FFC12510-04SBD224K6M

FPC/FFC connector 1.25mm Double Contact 4Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

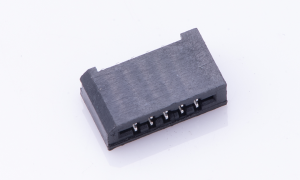

FFC12510-05SBD224K6M

FPC/FFC connector 1.25mm Double Contact 5Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-06SBC224K6M

FPC/FFC connector 1.25mm Double Contact 6Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Discontinued
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

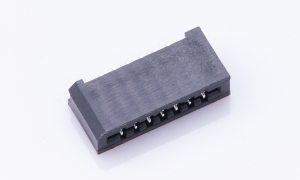

FFC12510-07SBD224K6M

FPC/FFC connector 1.25mm Double Contact 7Circuits(3mm)(SMT)

Stock(pcs)	10	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-07-23

FFC12510-08SBC224K6M

FPC/FFC connector 1.25mm Double Contact 8Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Discontinued
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-09SBD224K6M

FPC/FFC connector 1.25mm Double Contact 9Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-10SBD224K6M

FPC/FFC connector 1.25mm Double Contact 10Circuits(3mm)(SMT)

Stock(pcs)	1160	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-07-23

FFC12510-11SBD224K6M

FPC/FFC connector 1.25mm Double Contact 11Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-12SBD224K6M

FPC/FFC connector 1.25mm Double Contact 12Circuits(3mm)(SMT)

Stock(pcs)	39	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-07-23

FFC12510-13SBD224K6M

FPC/FFC connector 1.25mm Double Contact 13Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-14SBD224K6M

FPC/FFC connector 1.25mm Double Contact 14Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-15SBD224K6M

FPC/FFC connector 1.25mm Double Contact 15Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-16SBD224K6M

FPC/FFC connector 1.25mm Double Contact 16Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-17SBD224K6M

FPC/FFC connector 1.25mm Double Contact 17Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

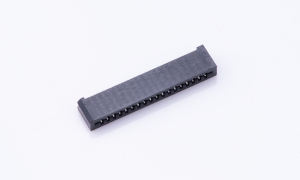

FFC12510-18SBC224K6M

FPC/FFC connector 1.25mm SMT Double Contact 18PIN Black

Stock(pcs)	97	Status	Inactive
MPQ	1500	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-07-19

FFC12510-18SBD224K6M

FPC/FFC connector 1.25mm Double Contact 18Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-19SBD224K6M

FPC/FFC connector 1.25mm Double Contact 19Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-20SBD224K6M

FPC/FFC connector 1.25mm Double Contact 20Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-21SBD224K6M

FPC/FFC connector 1.25mm Double Contact 21Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-22SBD224K6M

FPC/FFC connector 1.25mm Double Contact 22Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-23SBD224K6M

FPC/FFC connector 1.25mm Double Contact 23Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-24SBD224K6M

FPC/FFC connector 1.25mm Double Contact 24Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-25SBD224K6M

FPC/FFC connector 1.25mm Double Contact 25Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-26SBD224K6M

FPC/FFC connector 1.25mm Double Contact 26Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-27SBD224K6M

FPC/FFC connector 1.25mm Double Contact 27Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-28SBD224K6M

FPC/FFC connector 1.25mm Double Contact 28Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

FFC12510-30SBD224K6M

FPC/FFC connector 1.25mm Double Contact 30Circuits(3mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	1500	MOQ	1
Lead time	Estimated delivery date 2025-07-23

Category
CategoryFPC/FFC Connector（SMT）
Circuits4-28,30
Pitch1.25mm
Contact directionDual contact
Height5.5mm
Electrical
Current - Maximum per Contact0.50A
Voltage - Maximum50V
Contact Resistance20 mΩ Max
Insulation Resistance800 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-40ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingTin
Material - Plating TerminationTin
Material - ResinPA9T UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

FFC12510 series.pdf
