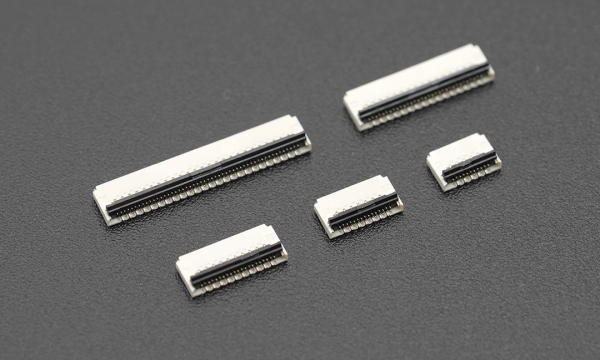

FFC03009 FPC/FFC connector 0.3mm Double Contact(H1.0)(SMT)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

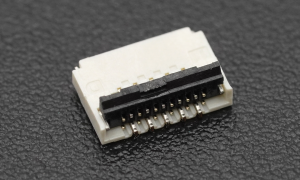

FFC03009-11SBD113W5M

FPC/FFC connector 0.3mm Double Contact 11Circuits(1mm)(SMT)

Stock(pcs)	100	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

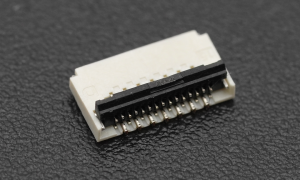

FFC03009-15SBD113W5M

FPC/FFC connector 0.3mm Double Contact 15Circuits(1mm)(SMT)

Stock(pcs)	31	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

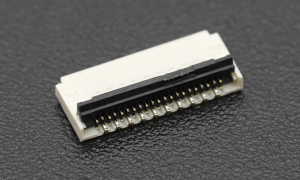

FFC03009-21SBD113W5M

FPC/FFC connector 0.3mm Double Contact 21Circuits(1mm)(SMT)

Stock(pcs)	140	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

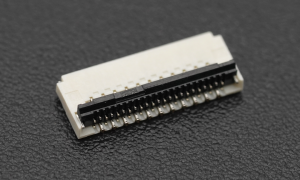

FFC03009-23SBD113W5M

FPC/FFC connector 0.3mm Double Contact 23Circuits(1mm)(SMT)

Stock(pcs)	30	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

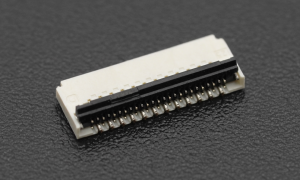

FFC03009-25SBD113W5M

FPC/FFC connector 0.3mm Double Contact 25Circuits(1mm)(SMT)

Stock(pcs)	7	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

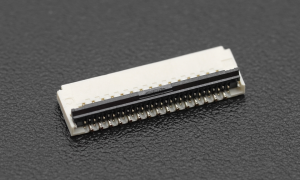

FFC03009-31SBD113W5M

FPC/FFC connector 0.3mm Double Contact 31Circuits(1mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date 2025-06-04

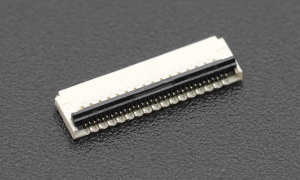

FFC03009-33SBD113W5M

FPC/FFC connector 0.3mm Double Contact 33Circuits(1mm)(SMT)

Stock(pcs)	156	Status	Active
MPQ	5000	MOQ	5000
Lead time	Estimated delivery date when out of stock 2025-06-04

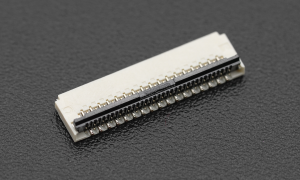

FFC03009-35SBD113W5M

FPC/FFC connector 0.3mm Double Contact 35Circuits(1mm)(SMT)

Stock(pcs)	7794	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

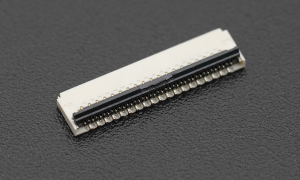

FFC03009-39SBD113W5M

FPC/FFC connector 0.3mm Double Contact 39Circuits(1mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date 2025-06-04

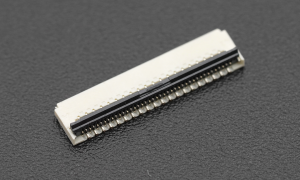

FFC03009-41SBD113W5M

FPC/FFC connector 0.3mm Double Contact 41Circuits(1mm)(SMT)

Stock(pcs)	0	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date 2025-06-04

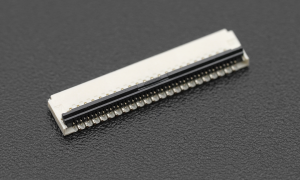

FFC03009-45SBD113W5M

FPC/FFC connector 0.3mm Double Contact 45Circuits(1mm)(SMT)

Stock(pcs)	599	Status	Active
MPQ	5000	MOQ	1
Lead time	Estimated delivery date when out of stock 2025-06-04

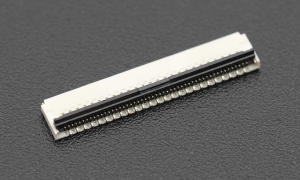

FFC03009-51SBD113W5M

FPC/FFC connector 0.3mm Double Contact 51Circuits(1mm)(SMT)

Stock(pcs)	397	Status	Active
MPQ	5000	MOQ	5000
Lead time	Estimated delivery date when out of stock 2025-06-04

Category
CategoryFPC/FFC Connector（SMT）
Circuits11,15,21,23,25,31,33,35,39,41,45,51
Pitch0.3mm
Contact directionDual contact
Height1.0mm
Electrical
Current - Maximum per Contact0.30A
Voltage - Maximum30V
Contact Resistance20 mΩ Max
Insulation Resistance50 MΩ Min
Withstanding Voltage200V AC r.m.s
Temperature Range operating-25ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingGold
Material - Plating TerminationGold
Material - ResinLCP UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-
