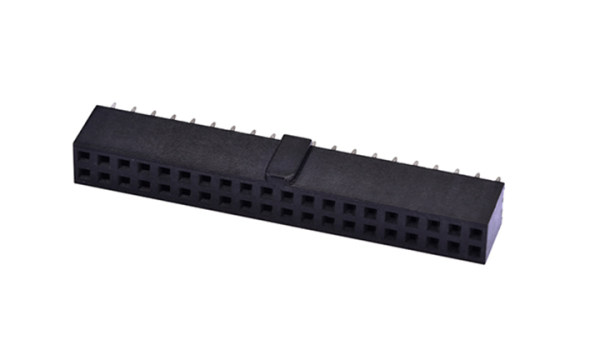

FFH25440 Female Header 2.54mm 180°Vertical Double row (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FFH25440-D10S1004K6K
Female Header 2.54mm ,Double row ,10Circuits ,180° Vertical(DIP) ,PA6T
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date 2025-10-09 -
FFH25440-D12S1001K6K
Female Header 2.54mm 180°Vertical Double row 12Circuits(DIP)
Stock(pcs) 0 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date 2025-10-04 -
FFH25440-D12S1004K6K
Female Header 2.54mm 180°Vertical Double row 12Circuits(DIP)
Stock(pcs) 0 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date 2025-10-04 -
FFH25440-D40S1001K6K
Female Header 2.54mm 180°Vertical Double row 40Circuits(DIP)
Stock(pcs) 0 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date 2025-10-04 -
FFH25440-D40S1004K6K
Female Header 2.54mm 180°Vertical Double row 40Circuits(DIP)
Stock(pcs) 0 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date 2025-10-04
- Category
- CategoryFemale header-PCB socket Pitch：2.54mm （DIP）
- Circuits4-80
- Pitch2.54mm
- Entry Angle180° Vertical
- Color - ResinBlack
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+105ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPBT/PA6T UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
