FBH25402 Box Header 2.54mm 90°(DIP)_TXGA Industrial Electronic Co., Ltd.

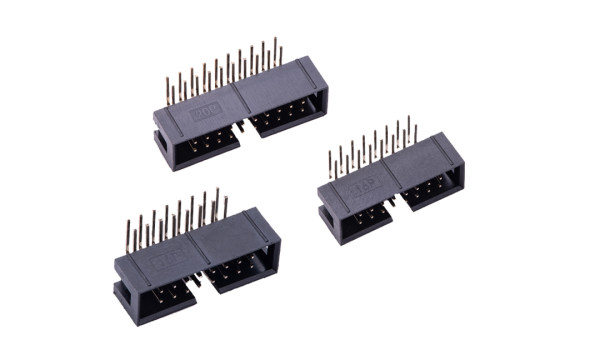

FBH25402 Box Header 2.54mm 90°(DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FBH25402-D06B1001K6K

Box Header 2.54mm 90°Angle 6Circuits(DIP)

Stock(pcs)	39	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D06B1004K6K

Box Header 2.54mm 90°Angle 6Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D08B1001K6K

Box Header 2.54mm 90°Angle 8Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D08B1004K6K

Box Header 2.54mm 90°Angle 8Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D10B1001K6K

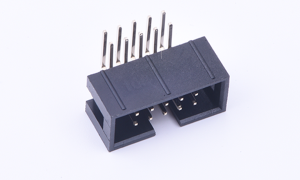

Box Header 2.54mm 90°Angle 10Circuits(DIP)

Stock(pcs)	35	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D10B1004K6K

Box Header 2.54mm 90°Angle 10Circuits(DIP)

Stock(pcs)	40	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

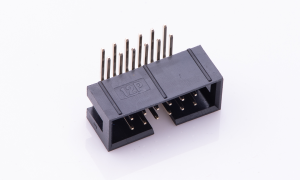

FBH25402-D12B1001K6K

Box Header 2.54mm 90°Angle 12Circuits(DIP)

Stock(pcs)	200	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D12B1004K6K

Box Header 2.54mm 90°Angle 12Circuits(DIP)

Stock(pcs)	1	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

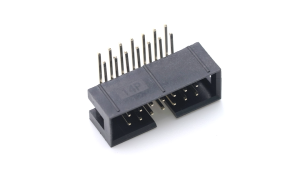

FBH25402-D14B1001K6K

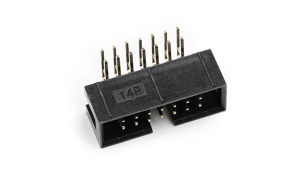

Box Header 2.54mm 90°Angle 14Circuits(DIP)

Stock(pcs)	17	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D14B1004K6K

Box Header 2.54mm 90°Angle 14Circuits(DIP)

Stock(pcs)	3	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D14B1011K6K

Box Header 2.54mm 90°Angle 14Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D14B1014K6K

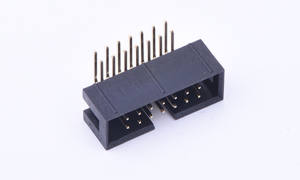

Box Header 2.54mm ,14Circuits ,90° Angle(DIP) ,1μ" ,PA9T

Stock(pcs)	45	Status	Active
MPQ	200	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-18

FBH25402-D16B1001K6K

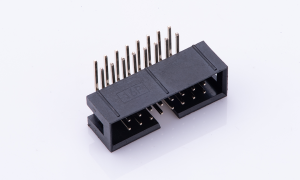

Box Header 2.54mm 90°Angle 16Circuits(DIP)

Stock(pcs)	81	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

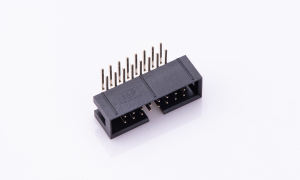

FBH25402-D16B1004K6K

Box Header 2.54mm 90°Angle 16Circuits(DIP)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D16B1014K6K

Box Header 2.54mm 90°Angle 16Circuits(DIP)(1μ'')

Stock(pcs)	55	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D18B1004K6K

Box Header 2.54mm ,18Circuits ,90° Angle(DIP) ,Gold flash ,PA9T

Stock(pcs)	0	Status	Active
MPQ	100	MOQ	1000
Lead time	Estimated delivery date 2025-08-18

FBH25402-D20B1001K6K

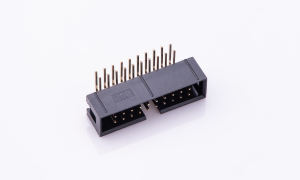

Box Header 2.54mm 90°Angle 20Circuits(DIP)

Stock(pcs)	54	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

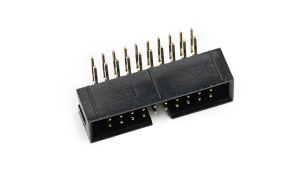

FBH25402-D20B1004K6K

Box Header 2.54mm 90°Angle 20Circuits(DIP)

Stock(pcs)	58	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D20B1009K6K

Box Header 2.54mm 90°Angle 20Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-17

FBH25402-D24B1001K6K

Box Header 2.54mm ,24Circuits ,90° Angle(DIP) ,Gold flash ,PBT

Stock(pcs)	5	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-17

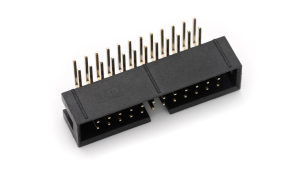

FBH25402-D24B1004K6K

Box Header 2.54mm 90°Angle 24Circuits(DIP)

Stock(pcs)	39	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-17

FBH25402-D26B1001K6K

Box Header 2.54mm 90°Angle 26Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D26B1004K6K

Box Header 2.54mm 90°Angle 26Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D26B3001K6I

Box Header 2.54mm 90°Angle 26Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D30B1001K6K

Box Header 2.54mm 90°Angle 30Circuits(DIP)

Stock(pcs)	40	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D30B1004K6K

Box Header 2.54mm 90°Angle 30Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D32B1001K6K

Box Header 2.54mm 90°Angle 32Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D32B1004K6K

Box Header 2.54mm 90°Angle 32Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D34B1001K6K

Box Header 2.54mm 90°Angle 34Circuits(DIP)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D34B1004K6K

Box Header 2.54mm 90°Angle 34Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

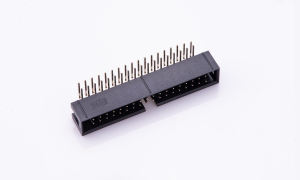

FBH25402-D36B1004K6K

Box Header 2.54mm 90°Angle 36Circuits(DIP)

Stock(pcs)	100	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-17

FBH25402-D40B1001K6K

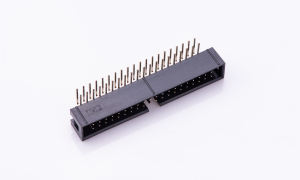

Box Header 2.54mm 90°Angle 40Circuits(DIP)

Stock(pcs)	5	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D40B1004K6K

Box Header 2.54mm 90°Angle 40Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D40B1014K6K

Box Header 2.54mm 90°Angle 40Circuits(DIP)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D50B1001K6K

Box Header 2.54mm 90°Angle 50Circuits(DIP)

Stock(pcs)	25	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-13

FBH25402-D50B1004K6K

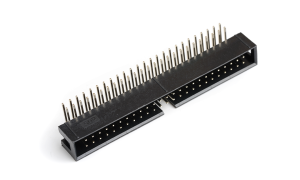

Box Header 2.54mm 90°Angle 50Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D50B1009K6K

Box Header 2.54mm 90°Angle 50Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-17

FBH25402-D60B1001K6K

Box Header 2.54mm 90°Angle 60Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D60B1004K6K

Box Header 2.54mm 90°Angle 60Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D64B1001K6K

Box Header 2.54mm 90°Angle 64Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

FBH25402-D64B1004K6K

Box Header 2.54mm 90°Angle 64Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-13

Category
CategoryBox Header 2.54mm 90°Angle(DIP)
Circuits6,8,10,12,14,16,18,20,24,26,30,32,34,36,40,50,60,64
Pitch2.54mm
Electrical
Current - Maximum per Contact3.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-40ºC~+105ºC
Material and Plating
Material-MetalBrass
Material - Plating MatingGold
Material - Plating TerminationGold or Tin
Material - ResinPA9T/PBT UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

FBH25402 Series.pdf
