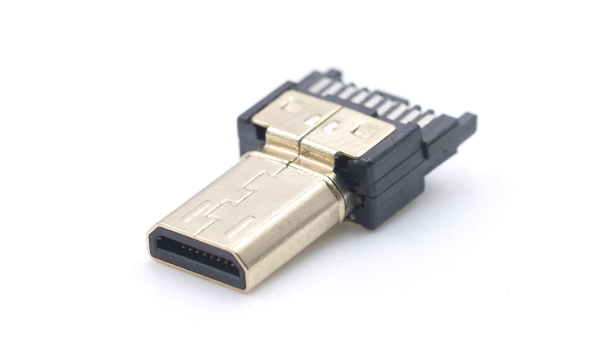

FHC05 Micro HDMI D-type 19Circuits ,MALE ,180° Vertical(Soldering)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryMicro HDMI D-type 19Circuits ,MALE ,180° Vertical(Soldering)
- Circuits19
- Electrical
- Current - Maximum per Contact0.30A
- Voltage - Maximum40V
- Contact Resistance30 mΩ Max
- Insulation Resistance10 MΩ Min
- Withstanding Voltage150V AC r.m.s
- Temperature Range operating-25°C～+85°C
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
