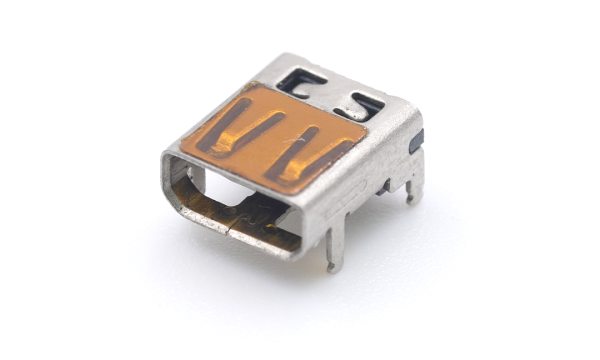

FHC03 Micro HDMI (D-type ) ,FEMALE ,90° Angle(Hybrid solder)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryMicro HDMI (D-type ) ,FEMALE ,90° Angle(Hybrid solder)
- Circuits19
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum40V
- Contact Resistance30 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25°C～+85°C
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
