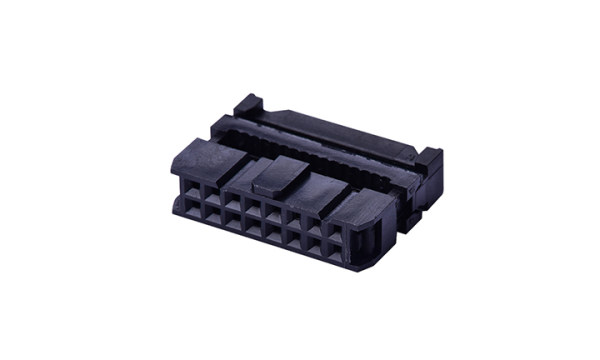

FID25402A IDC 2.54mm (3 Assemblies)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryIDC connector-wire plug(Three component)
- Circuits6-20,24,26,30,34,36,40,44,50,60,64
- Pitch2.54mm
- Electrical
- Current - Maximum per Contact2.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+105ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold or Nickel
- Material - Plating TerminationNickel
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
