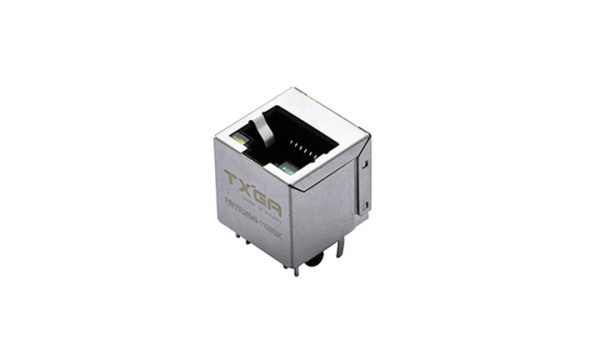

FRJ45049 RJ45 8P8C 180°Vertical 1Port(LED)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

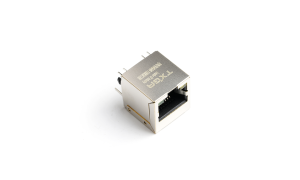

FRJ45049-1100K6K1200
RJ45 Connector 180°Vertical ,1Port ,Gold flash ,Black ,L:yellow,R:green ,
Stock(pcs) 950 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -
FRJ45049-1100K6K2200
RJ45 Connector ,1Port ,Gold flash ,Black ,L:green,R:yellow ,
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

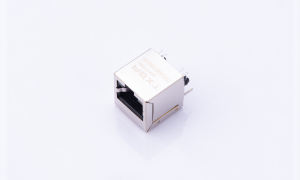

FRJ45049-1103K6K1200
RJ45 Connector 180°Vertical ,1Port ,3μ" ,Black ,L:yellow,R:green ,
Stock(pcs) 127 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}}
- Category
- CategoryRJ45 connector -PCB Socket 8P8C （DIP）
- FilterWithout
- Entry Angle180° Vertival
- LEDYes
- Color - ResinBlack
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum125V
- Contact Resistance30 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
