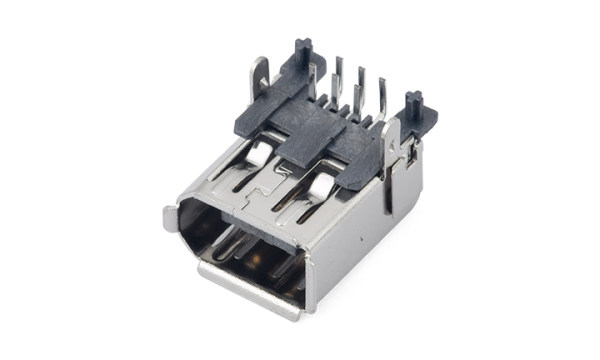

FUS602 IEEE1394 6Pin 90°Angle Female(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryIEEE1394 6Pin Female 90°（DIP）
- Circuits6
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum40V
- Contact Resistance30 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-20ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
