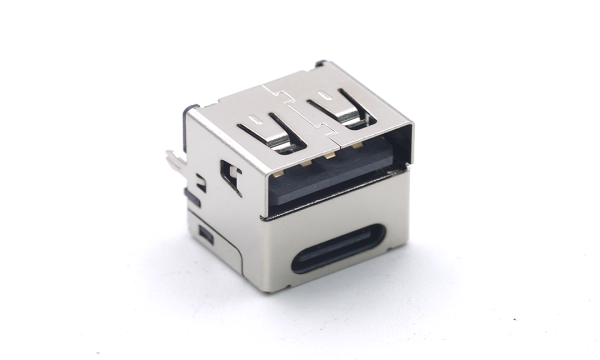

FUS667 USB3.1 C-type 14Circuits&USB2.0 A-type 4Circuits 180°Vertical Female（DIP）
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryUSB3.1 C-type 14Circuits&USB2.0 A-type 4Circuits 180°Vertical Female（DIP）
- Circuits18
- Electrical
- Current - Maximum per Contact8.00A
- Voltage - Maximum5V
- Contact Resistance50 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage100V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
