JL23 ,插头 ,24位 ,直端 ,焊线式
F0JL23-P24SW000-01

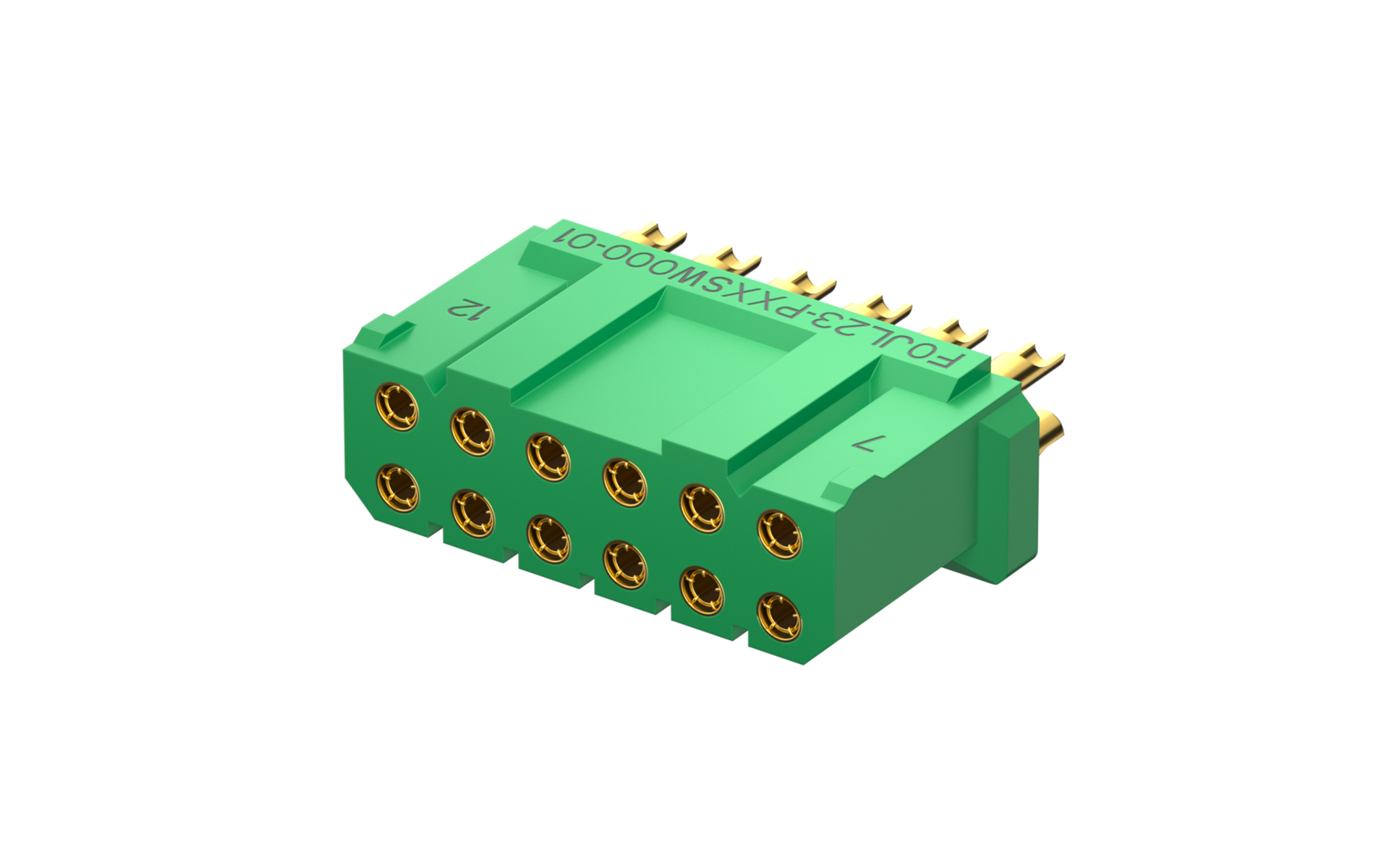

JL23, Plug, 24Circuits, 180°Vertical, Soldering
F0JL23-P24SW000-01 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-21
MPQ
1
MOQ
10
Quantity Unit Price
1 $21.111522
10 $20.002159
50 $17.783432
100 $16.674068
500 $14.455342
1000 $11.513848
2500 $11.429805
5000 $11.177677
10000 $11.009591
25000 $10.841506

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL23
Style
Plug
Pitch
2.54mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Green
Electrical
Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube

Product Drawings

F0JL23-PXXSW000-01
Receptacle
JL23, Socket, 24Circuits, 90°Angle, Through Hole

F0JL23-S24RD000-01

JL23, Socket, 24Circuits, 90°Angle, Through Hole

 JL23, Socket, 24Circuits, 180°Vertical, Through Hole

F1JL23-S24SD000-01

JL23, Socket, 24Circuits, 180°Vertical, Through Hole
