板对板连接器, 0.35mm, 母, 40位, 垂直(180度), 表面贴装, (组合高度0.6mm)
FBB03502-F40S1143BKM

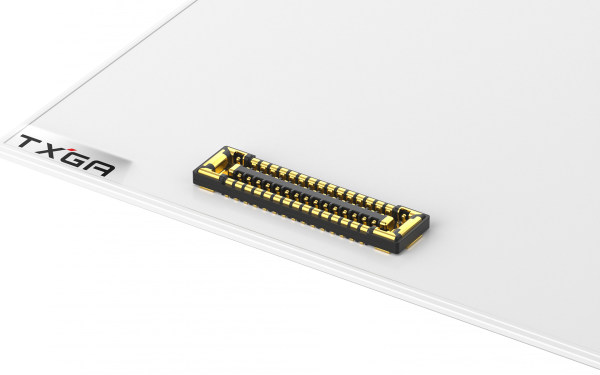

Board to Board Connector, 0.35mm, Female, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
FBB03502-F40S1143BKM Copy
Share this product
Stock(pcs)
329
Lead time

≦ 329 In stock

＞ 329 Estimated delivery date 2026-01-03

MPQ
15000
MOQ
15000
Quantity Unit Price
1 $0.315482
10 $0.223891
50 $0.203537
100 $0.193360
500 $0.175042
1000 $0.171480
5000 $0.168936
15000 $0.132299

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.35mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
7A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB03502-F series

3D Drawings

FBB03502-F40S1143BKM_ref

Product Specifications

Product specification FBB03502 (REVA)

Instruction Documents

Instruction of application FBB03502
Plug
Board to Board Connector, 0.35mm, Male, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)

FBB03502-M40S1143BKM

Board to Board Connector, 0.35mm, Male, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
