板对板连接器, 0.35mm, 公, 40位, 垂直(180度), 表面贴装, (组合高度0.6mm)
FBB03502-M40S1143BKM

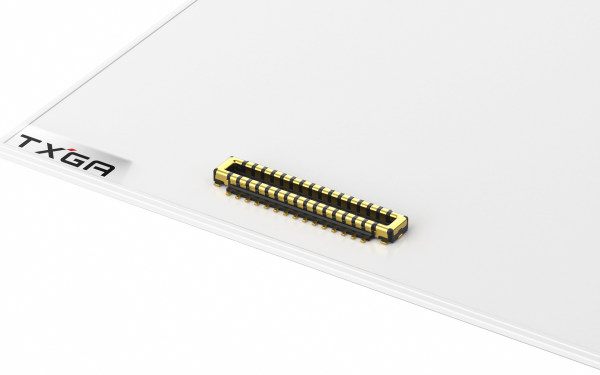

Board to Board Connector, 0.35mm, Male, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
FBB03502-M40S1143BKM Copy
Share this product
Stock(pcs)
318
Lead time

≦ 318 In stock

＞ 318 Estimated delivery date 2026-01-03

MPQ
15000
MOQ
15000
Quantity Unit Price
1 $0.288880
10 $0.209027
50 $0.190238
100 $0.180844
500 $0.163934
1000 $0.160646
5000 $0.158297
15000 $0.124477

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.35mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
7A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB03502-M series

3D Drawings

FBB03502-M40S1143BKM_ref

Product Specifications

Product specification FBB03502 (REVA)

Instruction Documents

Instruction of application FBB03502
Receptacle
Board to Board Connector, 0.35mm, Female, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)

FBB03502-F40S1143BKM

Board to Board Connector, 0.35mm, Female, 40Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
