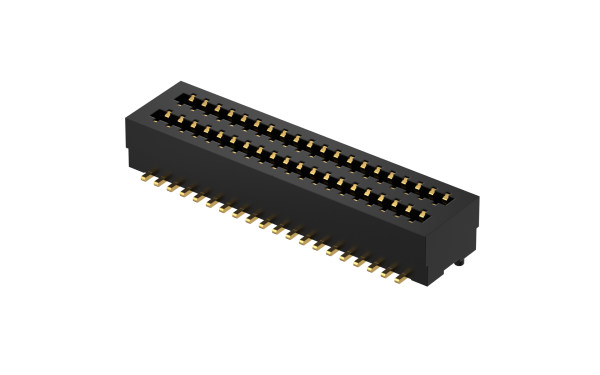

板对板连接器 0.8mm ,母座 ,14位 ,立贴(H1=4mm)
FBB08009-F14S1015K6MH40
Board to Board 0.8mm, FEMALE, 14Circuits, 180° Vertical(SMT)(H1=4mm)
FBB08009-F14S1015K6MH40 Copy
Share this product
Stock(pcs)
58
Lead time

≦ 58 In stock

＞ 58 Estimated delivery date 2025-10-21

MPQ
1500
MOQ
1500
Quantity Unit Price
1 $0.300794
10 $0.282949
50 $0.247260
100 $0.229415
500 $0.193726
1000 $0.143939
2500 $0.141967
5000 $0.139996
10000 $0.138024
25000 $0.136052

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
14Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB08009-F

Product Specifications

Specification
Plug
Board to Board 0.8mm, MALE, 14Circuits, 180° Vertical(SMT)(H2=4mm)

FBB08009-M14S1015K6MH40

Board to Board 0.8mm, MALE, 14Circuits, 180° Vertical(SMT)(H2=4mm)
