板对板连接器 0.8mm ,公座 ,14位 ,立贴(H2=4mm)
FBB08009-M14S1015K6MH40

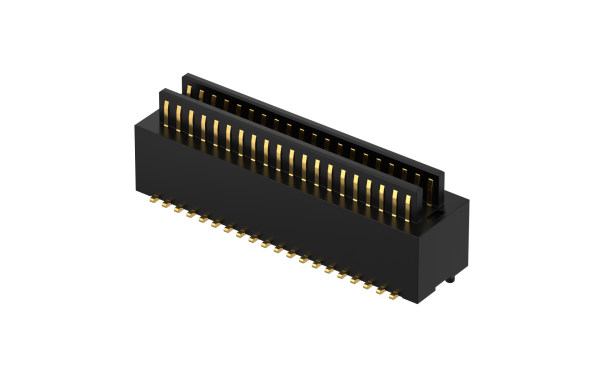

Board to Board 0.8mm, MALE, 14Circuits, 180° Vertical(SMT)(H2=4mm)
FBB08009-M14S1015K6MH40 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-21
MPQ
1500
MOQ
1500
Quantity Unit Price
1 $0.304198
10 $0.286898
50 $0.252299
100 $0.234999
500 $0.200399
1000 $0.156343
2500 $0.154194
5000 $0.152045
10000 $0.149896
25000 $0.147747

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.8mm
Row Option
Dual row
Number of Positions
14Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB08009-M

Product Specifications

Specification
Receptacle
Board to Board 0.8mm, FEMALE, 14Circuits, 180° Vertical(SMT)(H1=4mm)

FBB08009-F14S1015K6MH40

Board to Board 0.8mm, FEMALE, 14Circuits, 180° Vertical(SMT)(H1=4mm)
