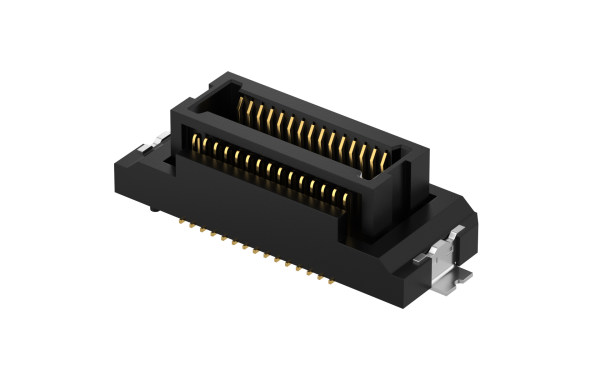

FBB08010-F30S1003BKM Board-to-Board Floating Connector 0.8mm, FEMALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

FBB08010-F30S1003BKM

浮动型板对板连接器 0.8mm ,母座 ,30位 ,立贴 (组合高度12.75mm)

Board-to-Board Floating Connector 0.8mm, FEMALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

Product Number：FBB08010-F30S1003BKM

Production Status： Active

Board-to-Board Floating Connector 0.8mm, FEMALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{7.223867\|tradeCurrencySymbol({digits:6})}}
10+	{{6.822983\|tradeCurrencySymbol({digits:6})}}
50+	{{6.021216\|tradeCurrencySymbol({digits:6})}}
100+	{{5.620333\|tradeCurrencySymbol({digits:6})}}
500+	{{4.818566\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 59

Lead time Ship Immediately

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Socket

Gender

Female

Pitch

0.8mm

Row Option

Dual row

Number of Positions

30Circuits

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

100 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB08010-F.pdf

3D Drawings

FBB08010-F30S1003BKM_REF.stp

Product Specifications

Product specification FBB08010.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
