浮动型板对板连接器 0.8mm ,公座 ,30位 ,立贴 (组合高度12.75mm)
FBB08010-M30S1003BKM

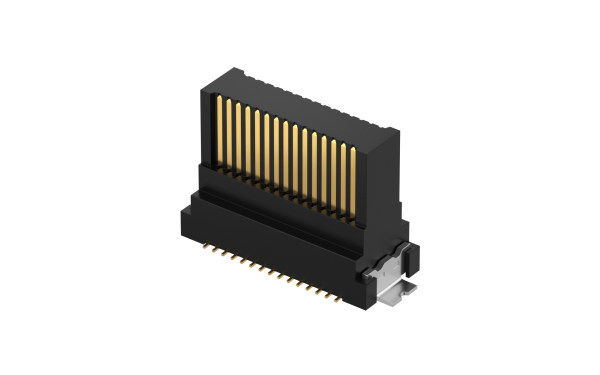

Board-to-Board Floating Connector 0.8mm, MALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)
FBB08010-M30S1003BKM Copy
Share this product
Stock(pcs)
127
Lead time

≦ 127 In stock

＞ 127 Estimated delivery date 2026-01-03

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $1.019425
10 $0.962853
50 $0.849708
100 $0.793136
500 $0.679991
1000 $0.543244
2500 $0.535751
5000 $0.528258
10000 $0.520765
25000 $0.513272

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.8mm
Row Option
Dual row
Number of Positions
30Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
100 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB08010-M.pdf

3D Drawings

FBB08010-M30S1003BKM_REF

Product Specifications

Product specification FBB08010
Receptacle
Board-to-Board Floating Connector 0.8mm, FEMALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

FBB08010-F30S1003BKM

Board-to-Board Floating Connector 0.8mm, FEMALE, 30Circuits, 180° Vertical(SMT) (Mated H=12.75mm)
