FBB20002-F20S3013W5M
板对板连接器 2mm ,母座 ,20位 ,立贴 (组合高度20.3mm)
Board to Board 2mm, Female, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)
Product Number：FBB20002-F20S3013W5M
Production Status： Active
Board to Board 2mm, Female, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)

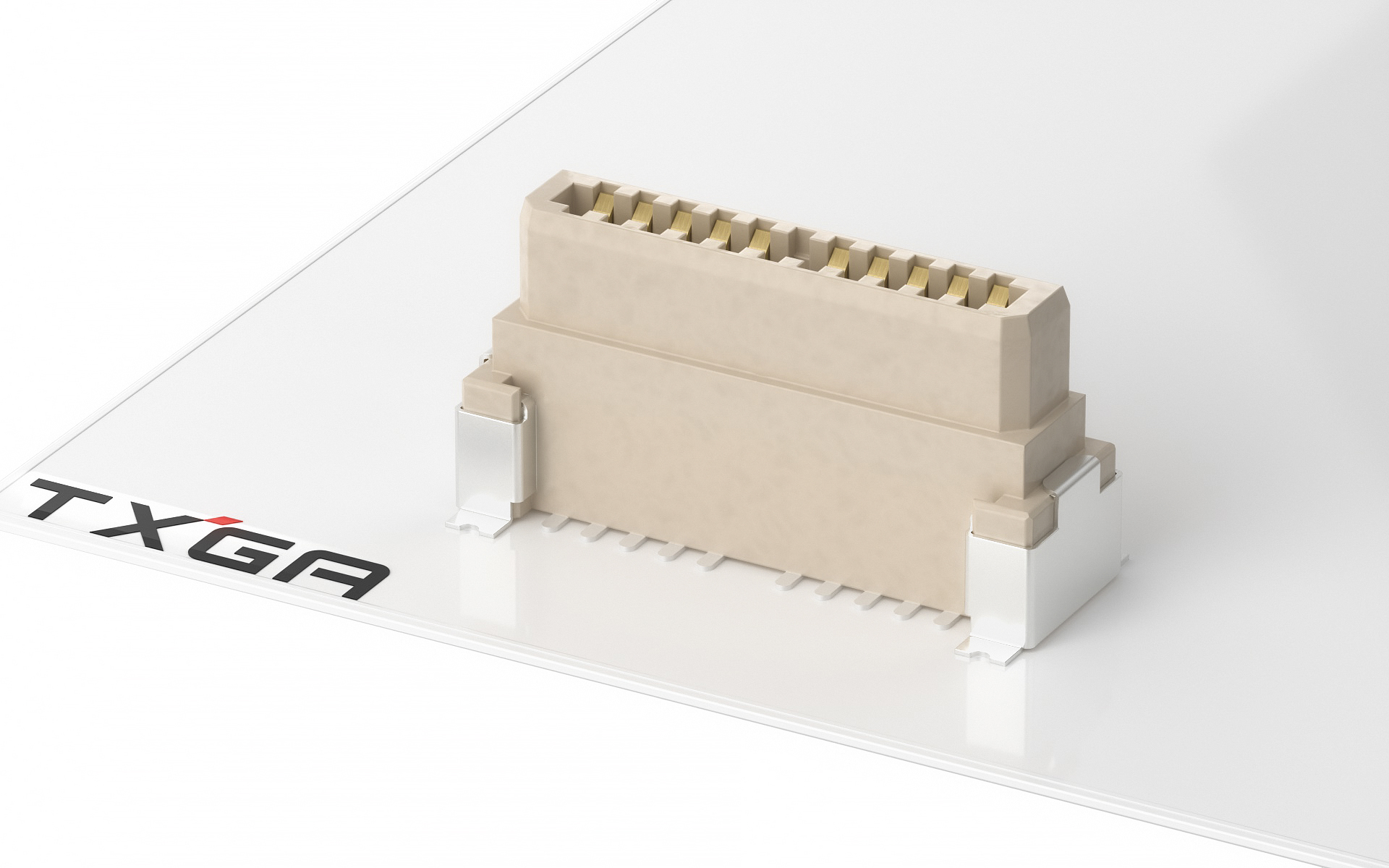

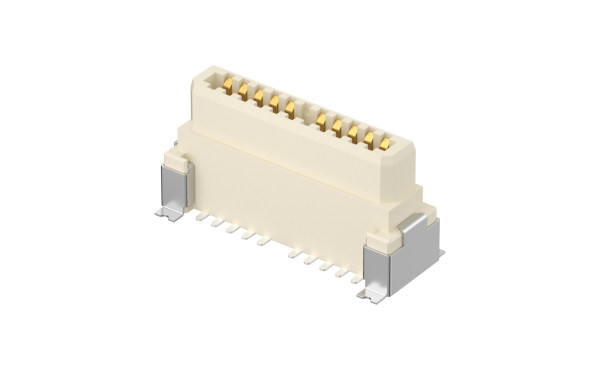

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{11.967151|tradeCurrencySymbol({digits:6})}}
10+ {{11.458894|tradeCurrencySymbol({digits:6})}}
50+ {{9.65689|tradeCurrencySymbol({digits:6})}}
100+ {{8.871401|tradeCurrencySymbol({digits:6})}}
500+ {{7.854887|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 1031
Lead time Ship Immediately
MOQ 200
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Natural
Current(Max)
1A
Voltage(Max)
100V
Contact Resistance
100 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FBB20002-F.pdf

3D Drawings

FBB20002-F20S3013W5M-REF.STEP
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Board to Board 2mm, Male, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)
FBB20002-M20S3013W5M
Board to Board 2mm, Male, 20Circuits, 180° Vertical(SMT) (Mated height 20.3mm)
