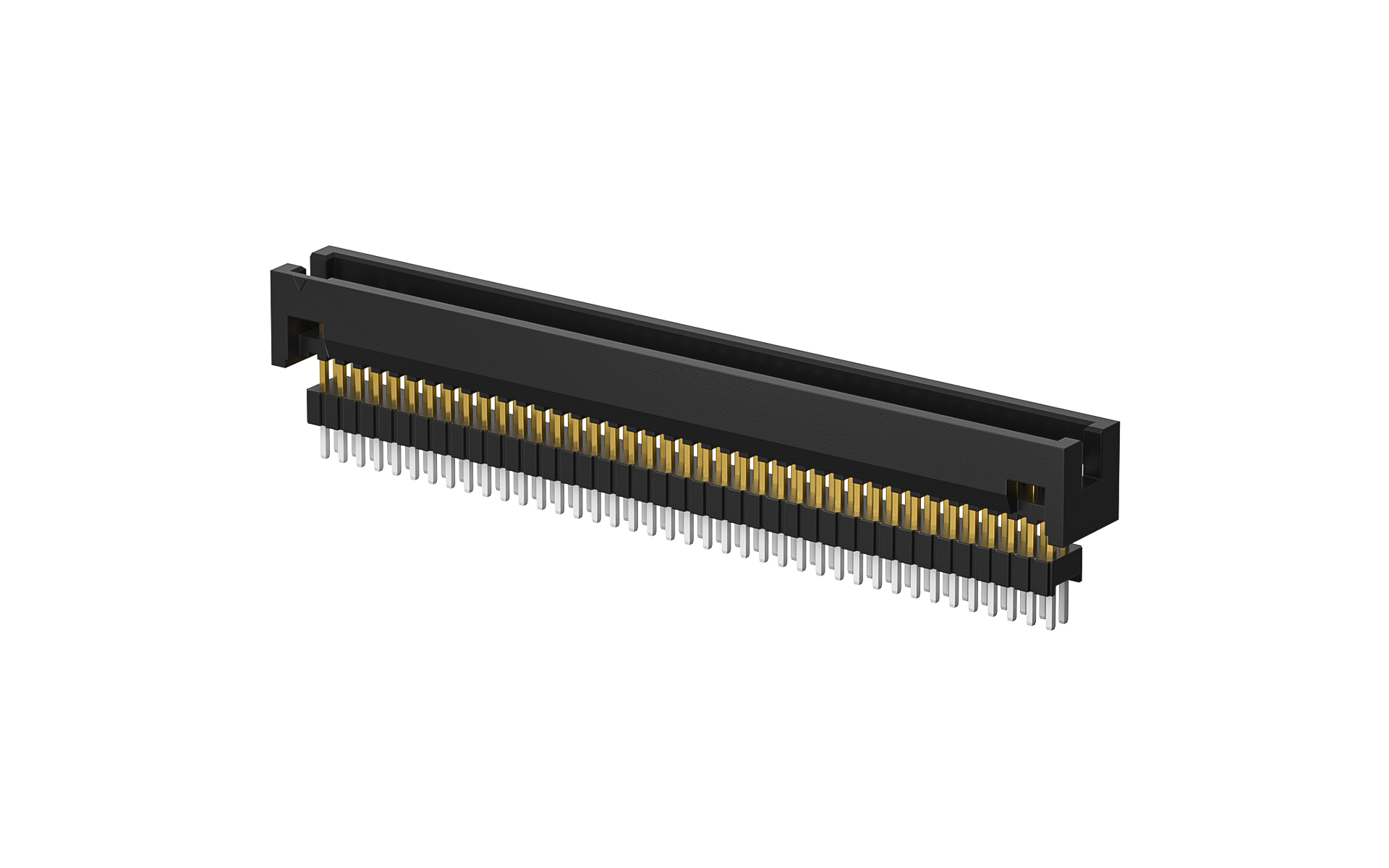

FBH12722-D50S1034BKL02 Box Header, 1.27mm, 50Circuits, Vertical(180°), Through hole, PA6T, 0.075μm

FBH12722-D50S1034BKL02

简易牛角,1.27mm,50位,垂直(180度),通孔焊接,PA6T,0.075μm

Box Header, 1.27mm, 50Circuits, Vertical(180°), Through hole, PA6T, 0.075μm

Product Number：FBH12722-D50S1034BKL02

Production Status： Active

Box Header, 1.27mm, 50Circuits, Vertical(180°), Through hole, PA6T, 0.075μm

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{36.783573\|tradeCurrencySymbol({digits:6})}}
10+	{{34.989252\|tradeCurrencySymbol({digits:6})}}
50+	{{29.905344\|tradeCurrencySymbol({digits:6})}}
100+	{{27.81197\|tradeCurrencySymbol({digits:6})}}
500+	{{24.073802\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1020

MPQ 3400

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Box Header/IDC

Product Category

Box Header

Style

Socket

Pitch

1.27mm

Row Option

Dual row

Number of Positions

50Circuits

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FBH12722_Series.pdf

3D Drawings

FBH12722-D50S1034BKL02-REF.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
