FFH12730-D50S1034K6LA Female Header, 1.27mm, Dual row, 50Circuits, Vertical(180°), Through hole, 0.075μm, PA6T, H4.3

FFH12730-D50S1034K6LA

排母,1.27mm,双排,50位,垂直(180度),通孔焊接,0.075μm,PA6T,H4.3

Female Header, 1.27mm, Dual row, 50Circuits, Vertical(180°), Through hole, 0.075μm, PA6T, H4.3

Product Number：FFH12730-D50S1034K6LA

Production Status： Active

Female Header, 1.27mm, Dual row, 50Circuits, Vertical(180°), Through hole, 0.075μm, PA6T, H4.3

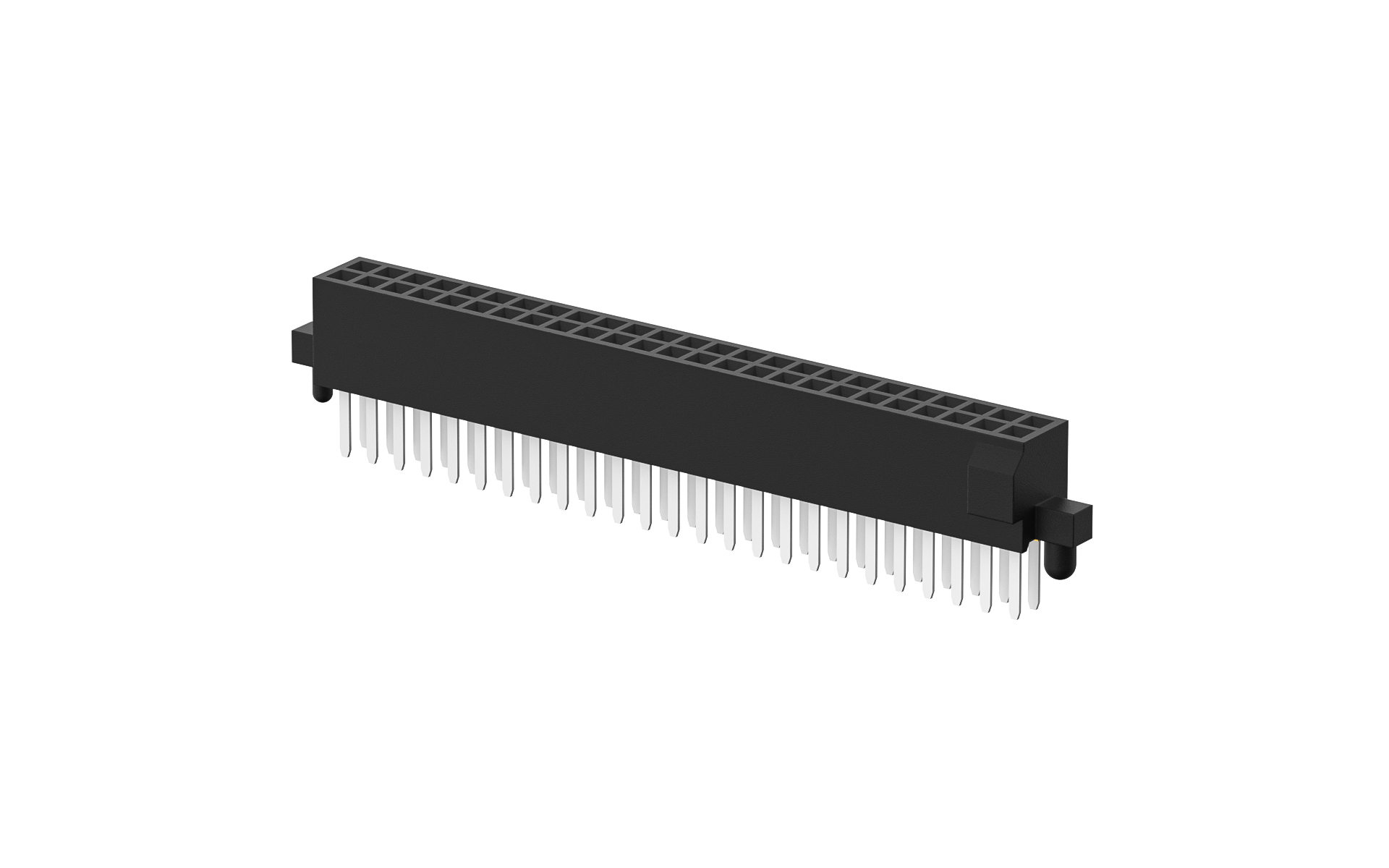

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{8.521152\|tradeCurrencySymbol({digits:6})}}
10+	{{8.153573\|tradeCurrencySymbol({digits:6})}}
50+	{{6.850338\|tradeCurrencySymbol({digits:6})}}
100+	{{6.282261\|tradeCurrencySymbol({digits:6})}}
500+	{{5.547103\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1020

MPQ 3400

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Type

Type A

Pitch

1.27mm

Row Option

Dual row

Number of Positions

50Circuits

Height(mm)

H4.3

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Through hole

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FFH12730 Series.pdf

3D Drawings

FFH12730-D50S1034K6LA-REF.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
