FCS6812-M0WS300K6K SCSI Connector 68Circuit, Male, Welding, Gold flash

FCS6812-M0WS300K6K

SCSI Connector 68Circuit, Male, Welding, Gold flash

Product Number：FCS6812-M0WS300K6K

Production Status： Active

SCSI Connector 68Circuit, Male, Welding, Gold flash

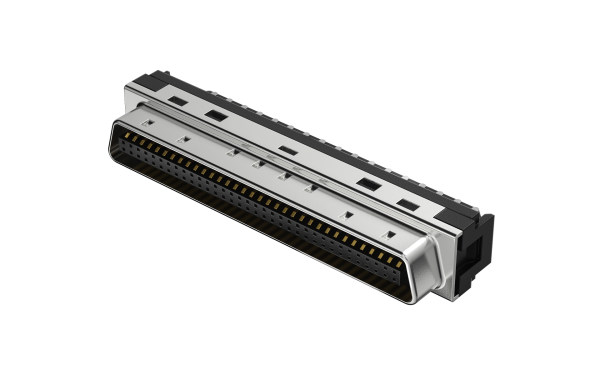

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{38.686871\|tradeCurrencySymbol({digits:6})}}
10+	{{36.609824\|tradeCurrencySymbol({digits:6})}}
50+	{{32.45573\|tradeCurrencySymbol({digits:6})}}
100+	{{30.378683\|tradeCurrencySymbol({digits:6})}}
500+	{{26.224588\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 115

Lead time Ship Immediately

MOQ 200

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

SCSI Connector

Product Category

SCSI Connector

Style

Plug

Gender

Male

Pitch

1.27mm

Number of Positions

68Circuits

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

35 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Soldering

Material-Contact

Phosphor bronze

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FCS6812 Series.pdf

3D Drawings

FCS6812-M0WS300K6K-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
