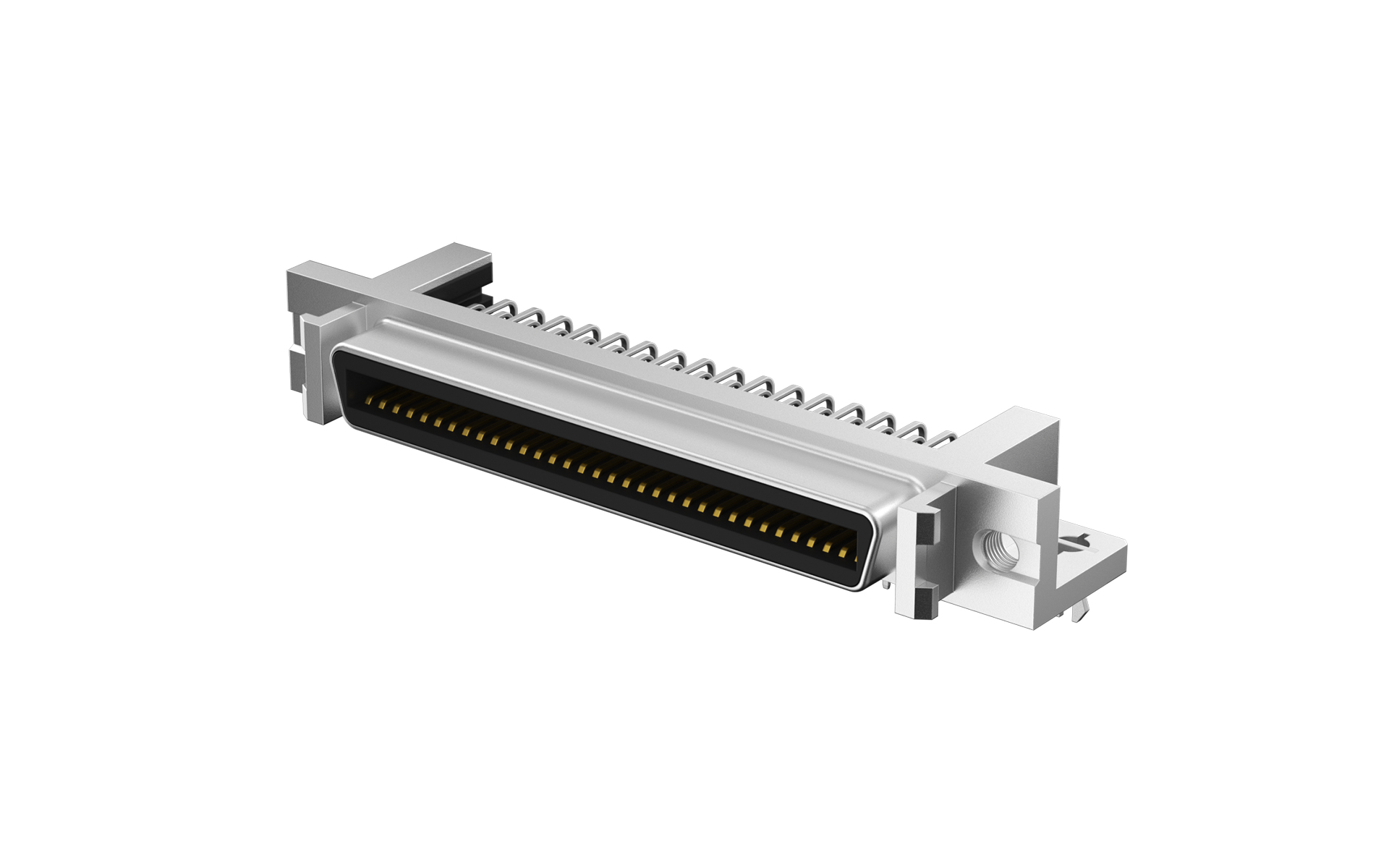

FCS6815-F0DB301BKL SCSI Connector 68Circuit, Female, 90° Angle(DIP), 1μ"

FCS6815-F0DB301BKL

SCSI Connector 68Circuit, Female, 90° Angle(DIP), 1μ"

Product Number：FCS6815-F0DB301BKL

Production Status： Active

SCSI Connector 68Circuit, Female, 90° Angle(DIP), 1μ

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{22.425694\|tradeCurrencySymbol({digits:6})}}
10+	{{21.322791\|tradeCurrencySymbol({digits:6})}}
50+	{{18.565534\|tradeCurrencySymbol({digits:6})}}
100+	{{17.003088\|tradeCurrencySymbol({digits:6})}}
500+	{{14.981099\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 720

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

SCSI Connector

Product Category

SCSI Connector

Style

Socket

Gender

Female

Pitch

1.27mm

Number of Positions

68Circuits

Orientation

Right angle(90°)

Colour

Black

Current(Max)

0.5A

Voltage(Max)

30V

Contact Resistance

35 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FCS6815.pdf

3D Drawings

FCS6815-F0DB301BKL-REF.STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
