FDC0311-M0DB1GNK Coaxial D-sub 90°Vertical male 3Circuits(3W3)(Plating Au 30μ'')

FDC0311-M0DB1GNK

Coaxial D-sub 90°Vertical male 3Circuits(3W3)(Plating Au 30μ'')

Product Number：FDC0311-M0DB1GNK

Production Status： Active

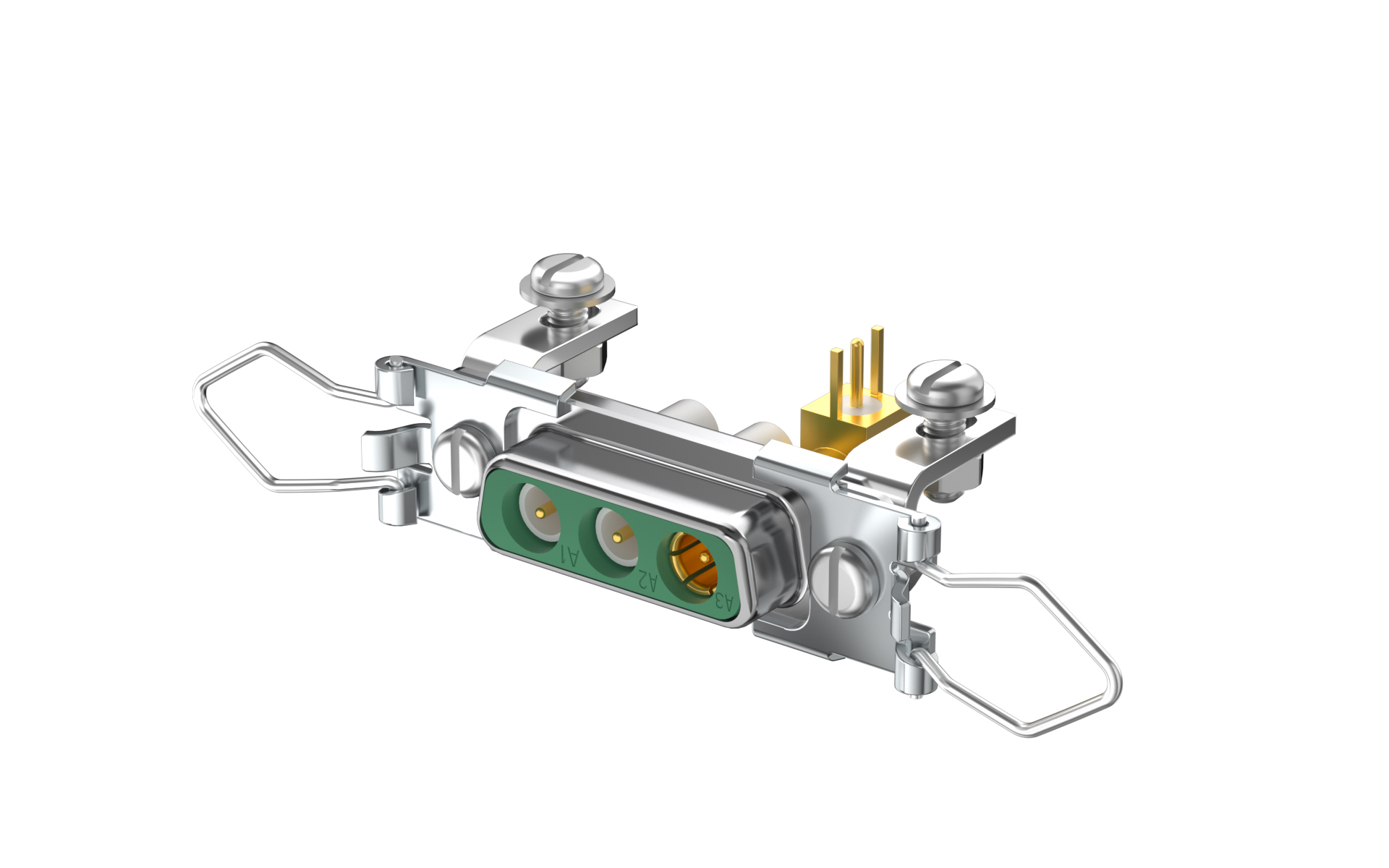

Coaxial D-sub 90°Vertical male 3Circuits(3W3)(Plating Au 30μ'')

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{74.274645\|tradeCurrencySymbol({digits:6})}}
50+	{{65.076547\|tradeCurrencySymbol({digits:6})}}
100+	{{61.857212\|tradeCurrencySymbol({digits:6})}}
500+	{{55.418543\|tradeCurrencySymbol({digits:6})}}
1000+	{{50.819494\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 292

Lead time Ship Immediately

MOQ 500

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Mixed RF coaxial D-SUB

Style

Socket

Gender

Male

Row Option

Single row

Number of Positions

3Circuits

Contact Layout

3W3

Orientation

Right angle(90°)

Colour

Green

Current(Max)

Voltage(Max)

250V

Contact Resistance

5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

3600V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Impedance

50Ω

Waterproof / Dustproof

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.75μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FDC0311-M0DB1GNK.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
