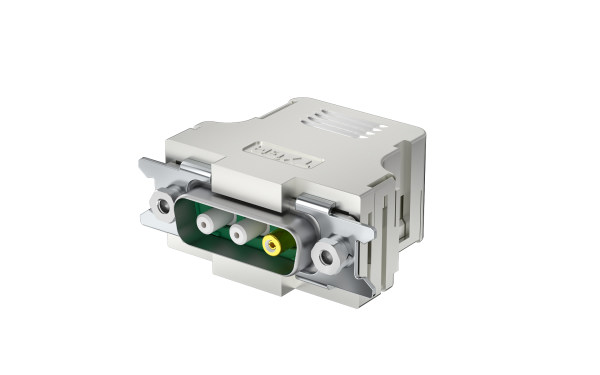

FDC0312-F0WS1330GNK
射频同轴D-SUB 180°焊线母插头 3位(3W3)(端子镀金30μ'')
Coaxial D-sub 180° Welding Type female 3Circuits(3W3)(Plating Au 30μ'')
Product Number：FDC0312-F0WS1330GNK
Production Status： Active
Coaxial D-sub 180° Welding Type female 3Circuits(3W3)(Plating Au 30μ'')
Coaxial D-sub 180° Welding Type female 3Circuits(3W3)(Plating Au 30μ'')
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{102.087221|tradeCurrencySymbol({digits:6})}}
50+ {{86.501385|tradeCurrencySymbol({digits:6})}}
100+ {{81.046343|tradeCurrencySymbol({digits:6})}}
500+ {{68.577675|tradeCurrencySymbol({digits:6})}}
1000+ {{62.343341|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 36
Lead time Ship Immediately
MOQ 500
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Mixed RF coaxial D-SUB
Style
Plug
Gender
Female
Row Option
Single row
Number of Positions
3Circuits
Contact Layout
3W3
Orientation
Vertical(180°)
Colour
Green
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
3600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Impedance
50Ω
Waterproof / Dustproof
No
Mounting Style
Soldering
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.75μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FDC0312-F0WS1330GNK.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
