FFH25413-D30B1014K6K Female Header 2.54mm, Double row, 30Circuits, 90° Angle(DIP), 1μ", PA6T

FFH25413-D30B1014K6K

排母 2.54mm (带凸) ,双排 ,30位 ,90°插件 ,1μ" ,PA6T

Female Header 2.54mm, Double row, 30Circuits, 90° Angle(DIP), 1μ", PA6T

Product Number：FFH25413-D30B1014K6K

Production Status： Active

Female Header 2.54mm, Double row, 30Circuits, 90° Angle(DIP), 1μ

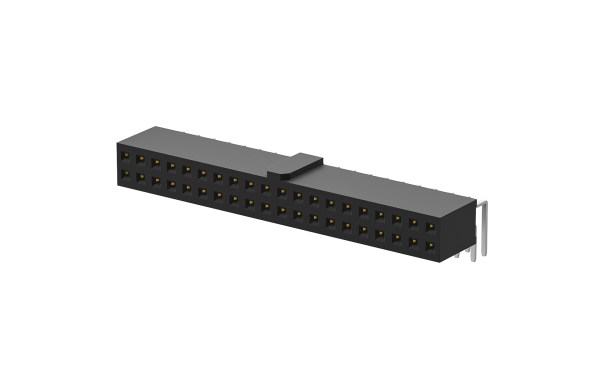

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{4.141508\|tradeCurrencySymbol({digits:6})}}
10+	{{3.911678\|tradeCurrencySymbol({digits:6})}}
50+	{{3.452018\|tradeCurrencySymbol({digits:6})}}
100+	{{3.222187\|tradeCurrencySymbol({digits:6})}}
500+	{{2.762527\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 950

Lead time Ship Immediately

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Pitch

2.54mm

Row Option

Dual row

Number of Positions

30Circuits

Orientation

Right angle(90°)

Colour

Black

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FFH25413 Series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
