FH24BB02-B0000GY0
重载连接器, H24B下壳, 底部出线，铝合金, 灰色, IP65

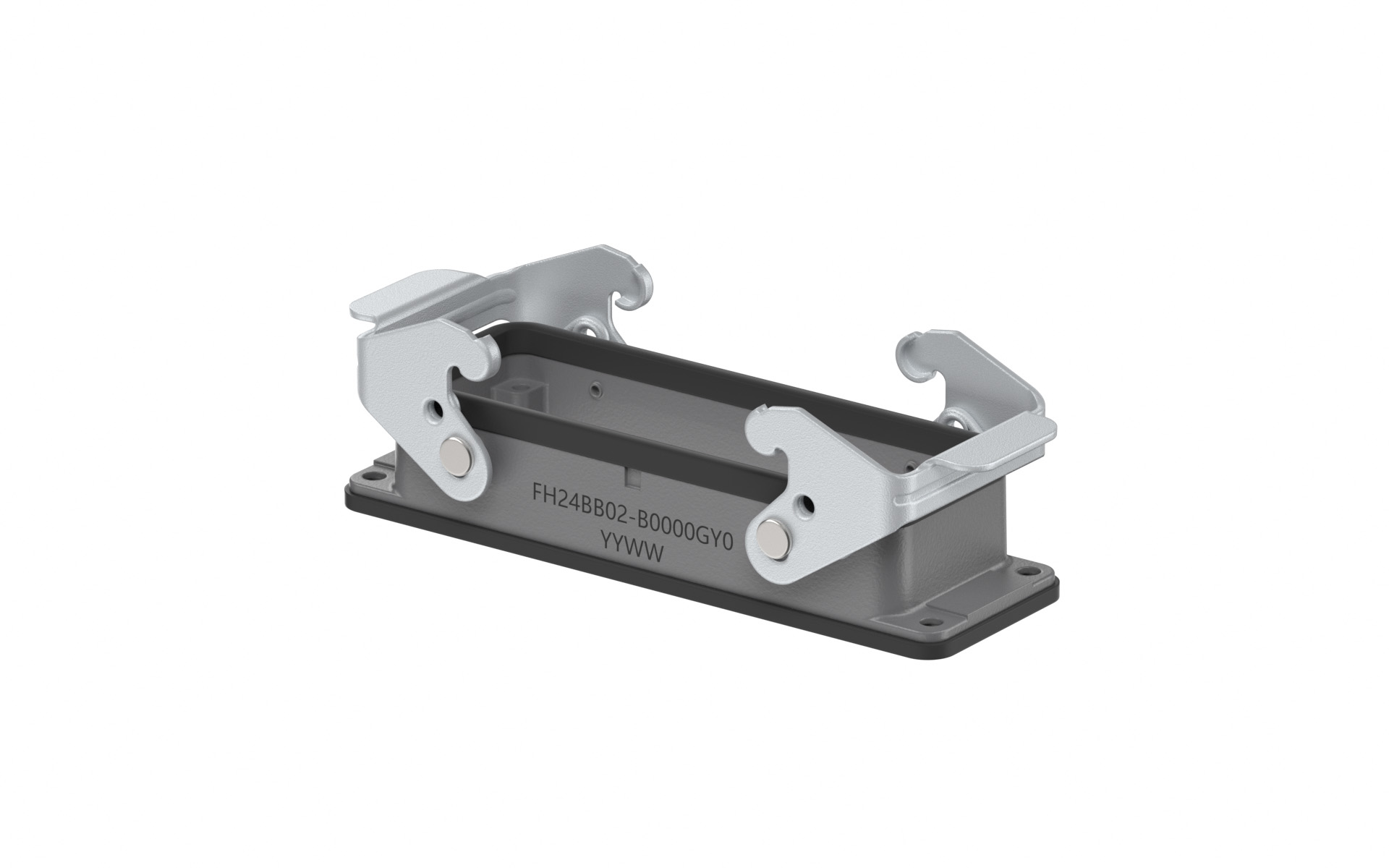

Heavy-duty connector, H24B Base shell, Bottom cable entry, Al-alloy, Gray, IP65
Product Number：FH24BB02-B0000GY0
Production Status： Active
Heavy-duty connector, H24B Base shell, Bottom cable entry, Al-alloy, Gray, IP65
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{47.083358|tradeCurrencySymbol({digits:6})}}
10+ {{42.626909|tradeCurrencySymbol({digits:6})}}
50+ {{34.876562|tradeCurrencySymbol({digits:6})}}
100+ {{29.160681|tradeCurrencySymbol({digits:6})}}
500+ {{27.998129|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 7
Lead time Ship Immediately
MOQ 10
MPQ 30

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Backshell
Product series
H24B
Thread Spec
N/A
Colour
Gray
Cable entry
Bottom cable entry
Operating Temperature Range
-40ºC~+125ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP65
Surface Treatment
Powder coated
Flammability Rating
UL94 V-0
Material Type
Aluminum alloy
Packaging
PE Bag

Product Drawings

FH24BB02-B0000GY0.pdf

3D Drawings

FH24BB02-B0000GY0.step
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Heavy-duty connector, HE insert, Male, 24+PE Pole, 16A, silver plated, Screw connection, Natural
FHE00001-M0244NAE0
Heavy-duty connector, HE insert, Male, 24+PE Pole, 16A, silver plated, Screw connection, Natural
Heavy-duty connector, HE insert, Female, 24+PE Pole, 16A, silver plated, Screw connection, Natural
FHE00002-F0244NAE0
Heavy-duty connector, HE insert, Female, 24+PE Pole, 16A, silver plated, Screw connection, Natural
Assemblies
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF001-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
Heavy-duty connector， HF24B Frame， No. of module: 6
FHDF002-10GY0
Heavy-duty connector， HF24B Frame， No. of module: 6
