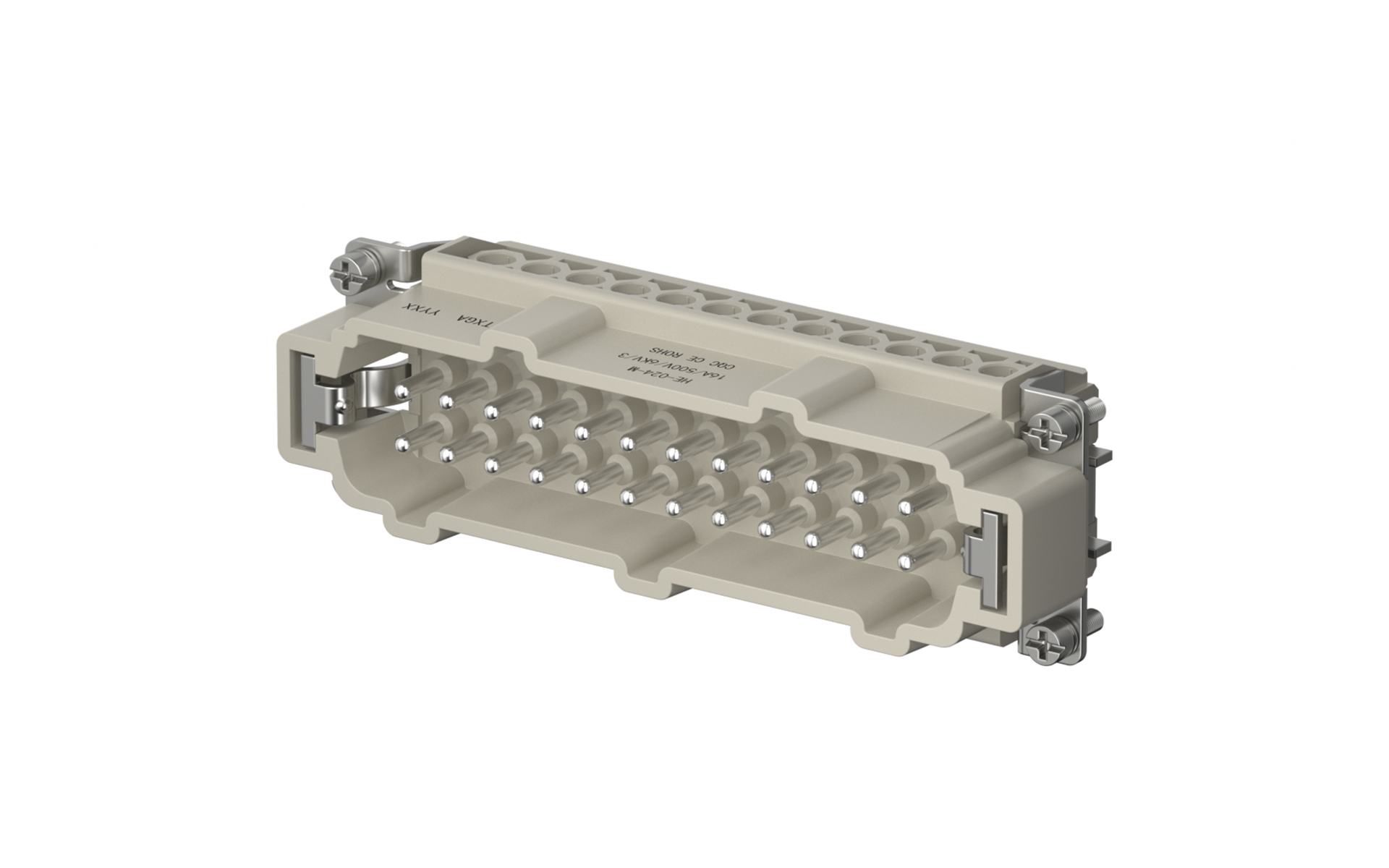

FHE00001-M0244NAE0 Heavy-duty connector, HE insert, Male, 24+PE Pole, 16A, silver plated, Screw connection, Natural

FHE00001-M0244NAE0

重载连接器, HE插芯, 公, 24位+PE, 16A, 镀银, 螺钉固定, 自然色

Heavy-duty connector, HE insert, Male, 24+PE Pole, 16A, silver plated, Screw connection, Natural

Product Number：FHE00001-M0244NAE0

Production Status： Active

Heavy-duty connector, HE insert, Male, 24+PE Pole, 16A, silver plated, Screw connection, Natural

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{64.393373\|tradeCurrencySymbol({digits:6})}}
10+	{{58.298527\|tradeCurrencySymbol({digits:6})}}
50+	{{47.698795\|tradeCurrencySymbol({digits:6})}}
100+	{{39.881492\|tradeCurrencySymbol({digits:6})}}
500+	{{38.291533\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 4

Lead time Ship Immediately

MOQ 10

MPQ 50

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

Style

Plug

Gender

Male

Row Option

Dual row

Number of Positions

24Circuits

Colour

Natural

Applicable wires (AWG Max.)

14AWG

Applicable wires (mm² Max.)

2.5mm²

Current(Max)

16A

Voltage(Max)

500V

Contact Resistance

1 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+125ºC

Rated impulse voltage

6KV

Mounting Style

Screw locking

Durability (Mating Cycles Max.)

500

Material-Contact

Copper alloy

Plating

Silver plated

Material-Resin

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

FHE00001-M0244NAE0.pdf

3D Drawings

FHE00001-M0244NAE0-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
